Remove oil level sensor, install - AR18.40-P-5111A
ENGINE 112 (except 112.912 /946 /961)
ENGINE 112
ENGINE 113
ENGINE 113 (except 113.968 /963 /992)
MODIFICATION NOTES
| 20.12.04 |
Engine oil filling capacity with oil filter modified. |
Engine 113.967 |
*BF18.00-P-1001-01H |
  |
Remove/install |
|
|
 |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between the columns of the lifting platform and position the four support plates below the lifting platform support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
| 1 |
Evacuate engine oil, drain |
 |
*BA01.45-P-1003-01B |
 |
*BF18.00-P-1001-01H |
 |
*WE58.40-Z-1005-22A |
| 2 |

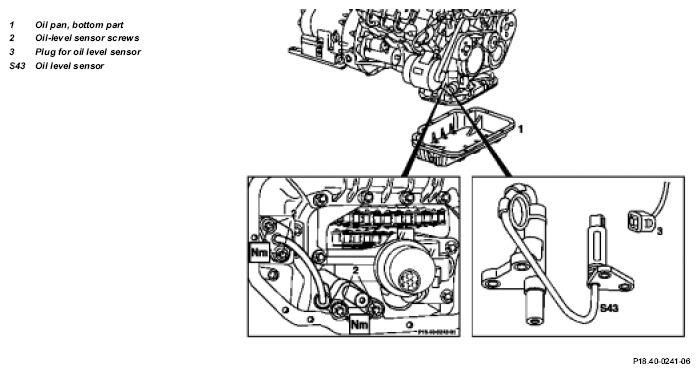

Remove lower part of oil pan (1) |
Models 129, 170, 202, 208, 210, 220, 463 |
AR01.45-P-7555VA |
| Models 163.154, 163.172 |
AR01.45-P-7555V |
| Model 163.174 |
AR01.45-P-7555VE |
| 3 |
Unplug connector (3) at oil level sensor |
|
|
| 4 |
Unscrew bolts of oil level sensor (2) |
|
*BA18.40-P-1002-01B |
| 5 |
Remove oil level switch (S43) |
|
|
| 6 |
Install in the reverse order |
|
|
OIL PAN
| Number |
Designation |
Engine 112.910/911/ 912/913/914/ 915/917/920/ 921/922/923/ 940/941/942/ 943/944/945/ 946/947/949/ 951/954/955/ 960/961/970/ 972/973/976 |
Engine 112.916/953/975, 113.948/966 |
| BA01.45-P-1003-01B |
Oil drain screw to oil pan |
M14 |
Nm |
30 |
30 |
OIL PAN
| Number |
Designation |
Engine 113.940/941/ 942/943/944/ 945/946/960/ 961/962/963/ 965/967/968/ 969/980/981/ 982/984/986/ 992/995 |
Engine 113.987/ 988/991 |
Engine 113.990 |
| BA01.45-P-1003-01B |
Oil drain screw to oil pan |
M14 |
Nm |
30 |
30 |
30 |
OIL LEVEL/OIL PRESSURE SENSOR
| Number |
Designation |
Engine 113.940/941/ 942/943/944/ 945/946/960/ 961/962/963/ 965/967/968/ 969/980/981/ 982/984/986/ 992/995 |
Engine 112 except 112.916/951/95 3/975 |
| BA18.40-P-1002-01B |
Oil level sensor on oil pan top section |
Nm |
10 |
10 |
OIL LEVEL/OIL PRESSURE SENSOR
| Number |
Designation |
Engine 113.987/ 988/990 |
Engine 113.991/ 993 |
| BA18.40-P-1002-01B |
Oil level sensor on oil pan top section |
Nm |
10 |
9 |
ENGINE LUBRICATION
| Number |
Designation |
Engine 112 except 112.916/953/975 |
Engine 112.916/953 |
Engine 112.975 |
| BF18.00-P-1001-01H |
Engine oil |
Filling capacity with oil filter |
Liters |
8.0 |
7.5 |
8.0 |
| Filling capacity without oil filter |
Liters |
7.5 |
7.0 |
7.5 |
| Specifications for Operating Fluids |
Sheet |
BB00.40-P-0229-01A |
BB00.40-P-0229-01A |
BB00.40-P-0229-01A |
| Sheet |
BB00.40-P-0229-03A |
BB00.40-P-0229-03A |
BB00.40-P-0229-03A |
| Sheet |
BB00.40-P-0229-05A |
BB00.40-P-0229-05A |
BB00.40-P-0229-05A |
ENGINE LUBRICATION
| Number |
Designation |
Engine 113.948/966 |
Engine 113.940/941/ 942/943/960/ 961/962/969/ 982 |
Engine 113.944/980/98 1/984/986/991 |
| BF18.00-P-1001-01H |
Engine oil |
Filling capacity with oil filter |
Liters |
8.0 |
8.0 |
7.5 |
| Filling capacity without oil filter |
Liters |
7.5 |
- |
- |
| Specifications for Operating Fluids |
Sheet |
BB00.40-P-0229-01A |
BB00.40-P-0229-01A |
- |
| Sheet |
BB00.40-P-0229-03A |
BB00.40-P-0229-03A |
- |
| Sheet |
BB00.40-P-0229-05A |
BB00.40-P-0229-05A |
BB00.40-P-0229-05A |
ENGINE LUBRICATION
| Number |
Designation |
Engine 113.963/ 963/965 |
Engine 113.967 |
Engine 113.987/988/ 990/992/993/ 995 |
| BF18.00-P-1001-01H |
Engine oil |
Filling capacity with oil filter |
Liters |
7.5 |
7.5 |
8.5 |
| Filling capacity without oil filter |
Liters |
7.0 |
- |
8.0 |
| Specifications for Operating Fluids |
Sheet |
BB00.40-P-0229-01A |
BB00.40-P-0229-01A |
- |
| Sheet |
BB00.40-P-0229-03A |
BB00.40-P-0229-03A |
- |
| Sheet |
BB00.40-P-0229-05A |
BB00.40-P-0229-05A |
BB00.40-P-0229-05A |
WORKSHOP EQUIPMENT
| WE58.40-Z-1005-22A |
Engine oil extractor |
