Removing and installing radiator - AR20.20-P-3865IM
ENGINE 275.980 in MODEL 215.379, 220.179
Shown on model 220
| Remove/Install | |||
| Risk of death cased by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage bottles. Wear protective gloves, protective clothing and eye protection. |
AS20.00-Z-0001-01A | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns when working in engine during starting procedure | Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 1 | Remove radiator unit | AR20.20-P-3871IM | |

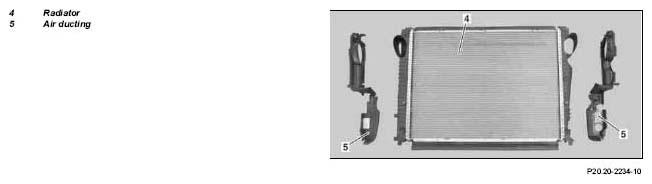

| 2 | Remove air ducting on left and right (5) | ||

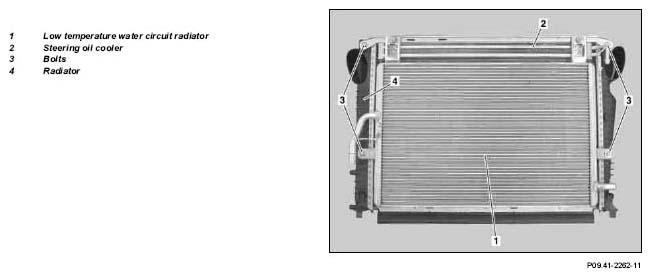

| 3 | Unscrew screws (3) at low temperature water circuit radiator (1) and at Steering oil cooler (2) | ||
| 4 | Remove radiator (4) | ||
| 5 | Install in the reverse order | ||
| 6 | Pour in coolant | AR20.00-P-1142H | |
| 7 | Bleed cooling system | AR20.00-P-1142-06GA | |
| 8 | Inspect cooling system for leaks | AR20.00-P-1010HA |
