Remove/install boot for mechanically swiveling trailer hitch - AR31.10-P-0003M

MODEL 220.026 /028 /063 /065 /070 /075 /126 /128 /165 /170 /175 /178 1# up to 31.8.02 with CODE (550) Trailer hitch except CODE (772) AMG styling package - front spoiler, side skirts and rear apron Mechanically swiveling trailer hitch

MODEL 220.025 /026 /028 /063 /065 /067 /070 /075 /083 /084 /087 /125 /126 /128 /165 /167 /170 /175 /176 /178 /183 /184 /187 1# as of 1.9.02 with CODE (550) Trailer hitch except CODE (855) TELE AID except CODE (772) AMG styling package - front spoiler, side skirts and rear apron except CODE (979) Special protection version Mechanically swiveling trailer hitch

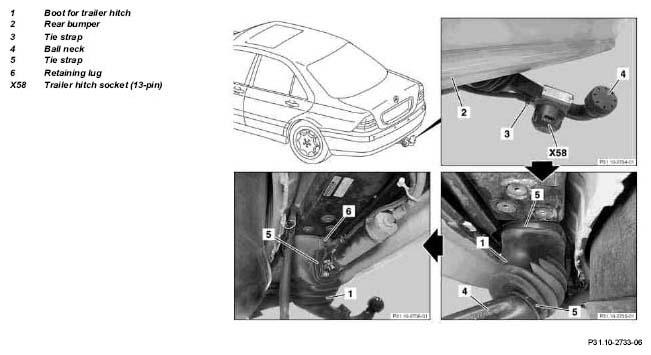

Fig 1: Identifying Boot For Mechanically Swiveling Trailer Hitch Remove/Install Components

	Remove/install
	Notes regarding work on trailer coupling	All models	AH31.10-P-1000-01A
1	Unlock ball neck (4)	The ball neck (4) must be unlocked and must not be locked anymore. In the event of a damaged operating lever or cable see: ↓
		Unlocking device for trailer hitch release cable.	WF58.50-P-3111-01M
		Unlock ball neck (4) if operating lever is damaged.	AR31.11-P-8000-03M
2	Remove rear bumper (2)		AR88.20-P-2200MA
3	Remove tie strap (3)
4	Unscrew 13-pin trailer hitch socket (X58)	Do not disconnect electrical connectors. Three screws.
5	Remove tie strap (5)
6	Open retainer tab (6) and pull boot for trailer hitch (1) back over ball neck (4)	Installation:  Pay attention to correct seat of boot for trailer hitch (1).
7	Install in the reverse order
8	Carry out function check of mechanically swiveling trailer hitch		AR31.19-P-1450M
