Removing radiator cover, disassembling and assembling, installing - AR88.40-P-4000M

MODEL 220

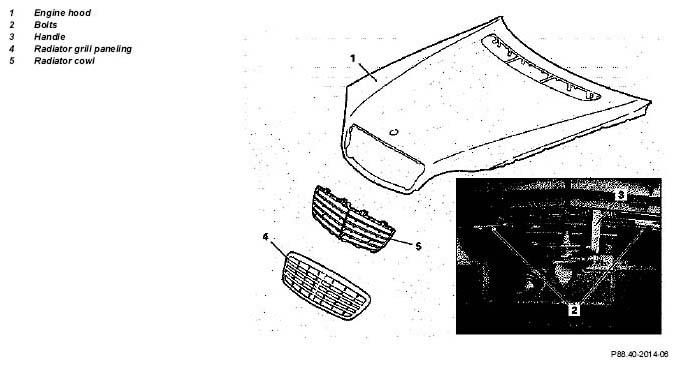

Fig 1: Identifying Radiator Grill Panelling, Cowl And Engine Hood

	Remove
1	Open engine hood (1)		AR88.40-P-1000M
2	Unscrew screws (2) (4 each)
3	Remove radiator cowl (5) and lay down on suitable subsurface	Avoid damaging chrome on molding (4) and paint on engine hood (1)
	Install
4	Install radiator cowl (5) in engine hood (1) from front	Thereby install handle for retaining hook (3) in radiator cowl (4). Avoid damaging chrome on molding (4) and paint on engine hood (1), check handle and retaining hook for proper function
5	Screw in screws (2) and tighten
6	Close engine hood (1)	Check engine hood lock and retaining hook for proper function	AR88.40-P-1000M
