Removing and installing sealing section at roof frame - AR88.85-P-2000M

MODEL 220

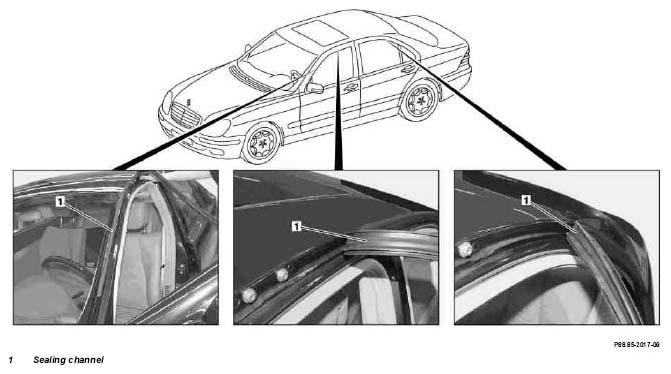

Fig 1: Identifying Sealing Channel

	Removal, installation
1	Pull sealing channel (1) out of retaining rails on A-pillar	Check sealing channel and replace according to condition
2	Pull sealing channel (1) out of retaining rail on roof frame above front and rear doors	If the sealing channel (1) is to be reused, ensure that the sealing channel (1) is not damaged
3	Install in opposite order	Installation:  First align sealing channel (1) at corners of roof frame and then press into retaining rails.
		Use lubricating fluid	*BR00.45-Z-1010-06A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Antifriction agent	A 000 989 03 67
