Removing and installing hydraulic pump for trunk lid remote control - AR88.50-P-5070N
MODEL 215, 220 with CODE (881b) Trunk lid remote control (RTL)

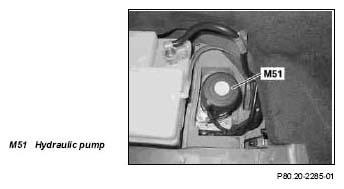

Shown on model 215

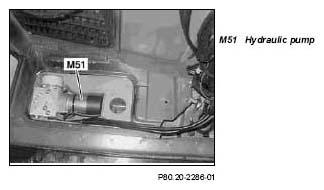

Shown on model 220
| Removing, installing | |||
| 1 | Withdraw ignition key | ||
| 2 | Remove paneling in trunk | AR68.30-P-4600M | |
| 3 | Remove battery | AR54.10-P-0005I | |
| 4.1 | Remove cover in battery frame | ||
| 4.2 | Remove hydraulic pump protective cap | ||
| 5 | Unclip hydraulic cylinder | ||
| 6 | Disconnect electric connector on hydraulic pump (M51) | ||
| 7 | Remove hydraulic pump (M51) from protective cap | ||
| 8 | Install in the reverse order |
