Removing and installing complete exterior mirror - AR88.70-P-9000N
MODEL 215

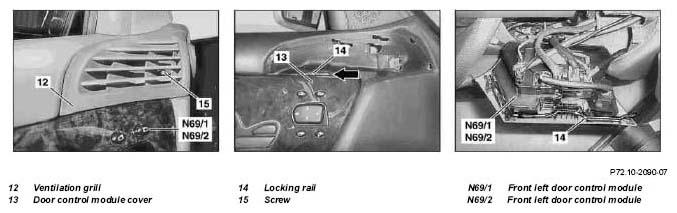

Fig 2: Identifying Front Left Door Control Module, Control Module Cover, Locking Rail With Ventilation Grill
| Removal, installation | |||
| 1 | Unscrew screw (15) from ventilation grill (12) and remove ventilation grill (12) | ||
| 2 | Press locking rail from door control module cover (14) toward rear in direction of arrow and unlock door control module cover (13) | ||
| 3 | Disconnect connectors for outside rearview mirror defroster and connector for outside rearview mirror adjustment on door control module (N69/1, N69/2) | ||
| 4 | Pivot outside rearview mirror (1) downward until screws (2) are accessible | ||

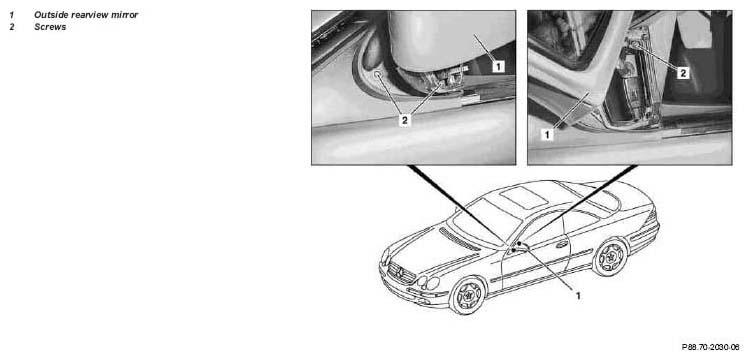

| 5 | Unscrew screws (2) | Figure | |
| 6 | Remove outside rearview mirror (1) | ||
| 7 | Install in opposite order | ||
| 8 | Check for proper function |
