Remove/install |
|
|
 |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between the four pillars of the hoist and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
| 1 |
Jack up vehicle |
Position lifting platform pillar support plates on lifting platform support points specified by the automotive manufacturer so that skid plates on underfloor can be removed. |
|
| 2.1 |

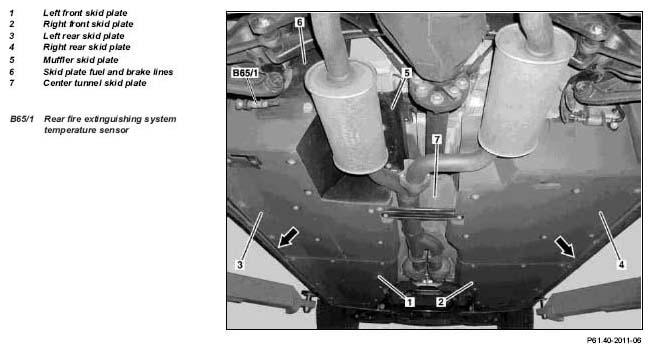

Remove pipes of fire extinguishing system (arrows) around skid plate longitudinal members. |
Only on vehicles with fire extinguisher system. |
|
| 3 |
Remove left and right front skid plates (1, 2). |
Bolt, armor plate to armor plate/underfloor |
*BA61.40-P-1001-01A |
| 4 |
Remove skid plate fuel and brake lines (6). |
Bolt, armor plate to armor plate/underfloor |
*BA61.40-P-1001-01A |
| 5.1 |
Remove rear fire extinguisher system temperature sensor (B65/1) with bracket and fasten to underbody. |
Only on vehicles with fire extinguisher system.
Do not disconnect electrical line from rear fire extinguisher system temperature sensor (B65/1), otherwise the fire extinguishing system may be activated.
Installation:
Ensure that the electrical line to the rear fire extinguisher system temperature sensor (B65/1) is routed without tension and without pinching or chafing points to prevent damaging the fire extinguishing system. |
|
| 6 |
Remove left and right rear skid plates (3, 4). |
Installation:
Ensure that the electrical line to the rear fire extinguisher system temperature sensor (B65/1) is not pinched to prevent damaging the fire extinguishing system. |
|
| |
|
Bolt, armor plate to armor plate/underfloor |
*BA61.40-P-1001-01A |
| 7 |
Remove exhaust system as of flange connection |
Model 220.175 |
AR49.10-P-7000AA |
| |
|
Model 220.176 |
AR49.10-P-7000IM |
| |
|
Model 220.178 |
AR49.10-P-7000L |
| 8 |
Remove center tunnel skid plate (7). |
Bolt, armor plate to armor plate/underfloor |
*BA61.40-P-1001-01A |
| 9 |
Remove muffler skid plate (5) |
Bolt, armor plate to armor plate/underfloor |
*BA61.40-P-1001-01A |
| 10 |
Install in the reverse order |
|
|
