Telephone (D-network), location of components - GF82.70-P-0003-01N

Model 215 up to 31.5.00 with code 316/317

Permanently installed telephone

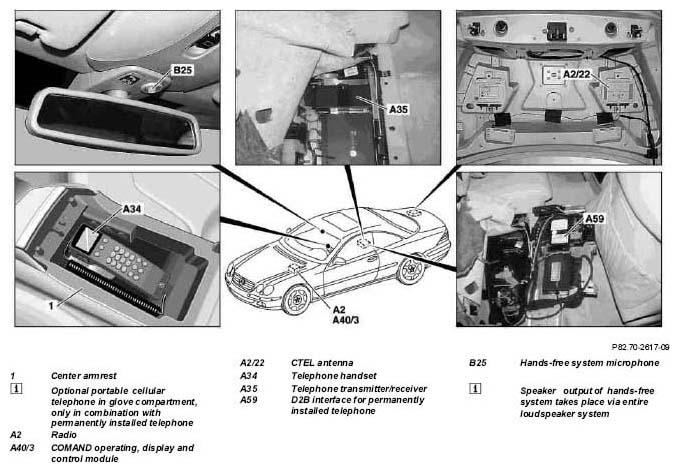

Fig 1: Identifying Telephone (D-Network) Components Location - Permanently Installed Telephone
G04841030

Portable cellular telephone

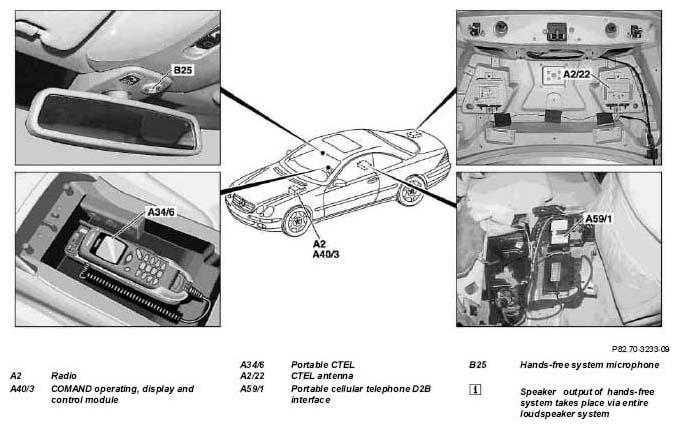

Fig 2: Identifying Telephone (D-Network) Components Location - Portable Cellular Telephone
G04841031
