Telephone (D-Network), location of components - GF82.70-P-0003-01AA

Model 220 up to 31.8.02 with code 853/854

Permanently installed telephone

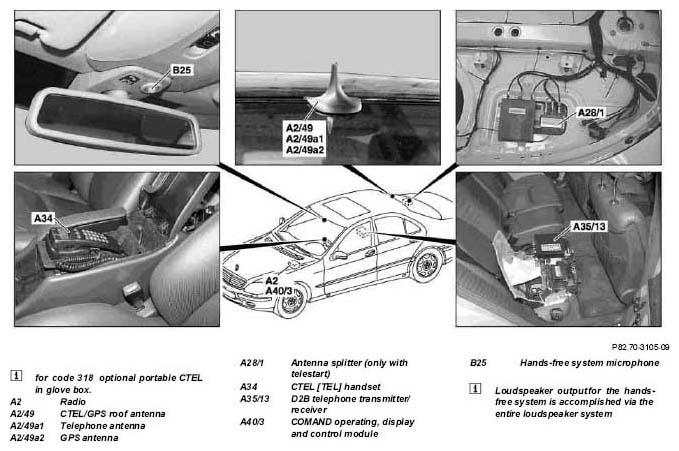

Fig 1: Identifying Telephone Components Location - Permanently Installed Telephone
G04841026

Portable cellular telephone

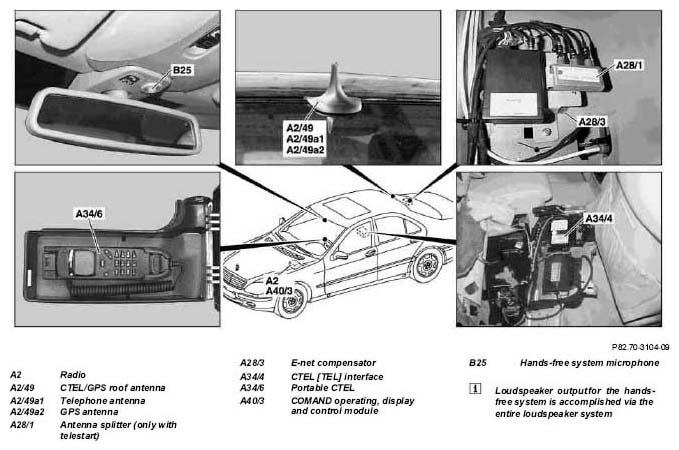

Fig 2: Identifying Telephone Components Location - Portable Cellular Telephone
G04841027
