TELE AID block diagram - GF82.95-P-0001-02SX

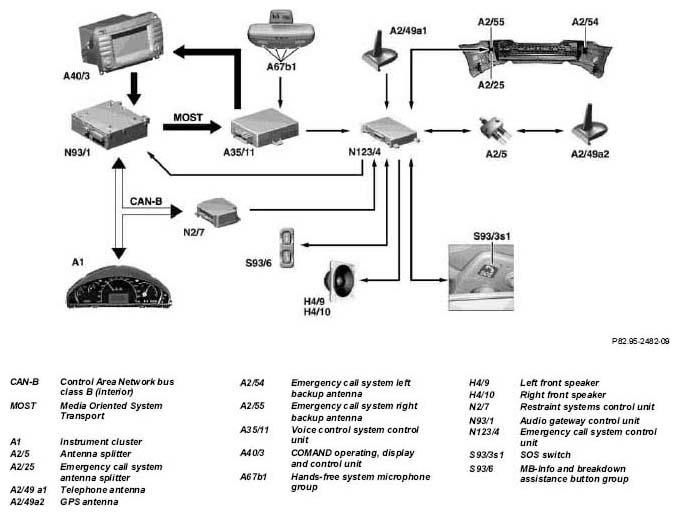

Fig 1: TELE AID Block Diagram - Shown On Model 220
G04841117

Shown on model 220

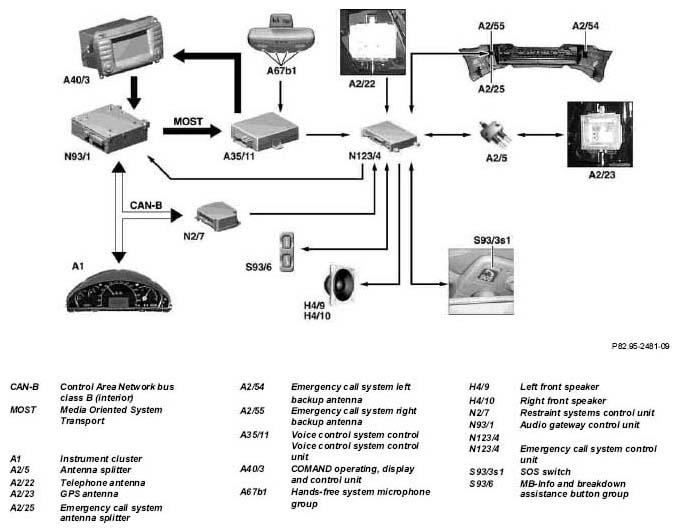

Fig 2: TELE AID Block Diagram - Shown On Model 215
G04841118

Shown on model 215
