All-activity module, location - GF83.30-P-2108-02GH

The all-activity module (AAM) (N10) is located in the left-hand side of the engine compartment. It is plugged on from below to the fuse and relay module (F1).

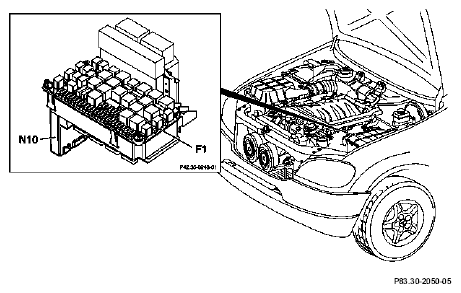

Fig 1: Identifying All-Activity Module And Relay Module

Courtesy of MERCEDES-BENZ USA
