Removing and installing additional socket - AR54.10-P-0020GH

MODEL 163

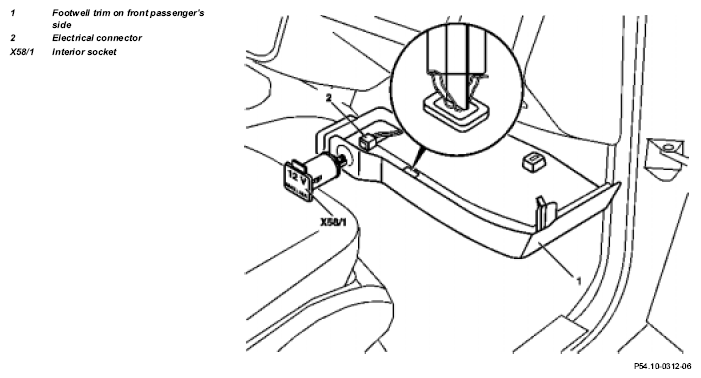

Fig 1: Identifying Interior Socket Components

	Removing, installing
1	Remove footwell trim on front passenger's side (1)
2	Disconnect electrical connector (2)
3	Press interior socket (X58/1) forwards out of footwell trim	Support footwell trim adequately on a suitable base, risk of breakage.
4	Install in reverse order
5	Carry out function check
