Remove/install traction systems control module - AR54.21-P-0816GI
MODEL 163.113 /128 /175 #A as of 221506 up to 371934, 163.154 /172 /174 #A as of 221506, 163.113 /128 /154 /172 #X as of 734088 with CODE (472a) Electronic Stability Program (ESP)
| Remove/install | ||
|---|---|---|
| 1 | Remove cover for fuse and relay module | |

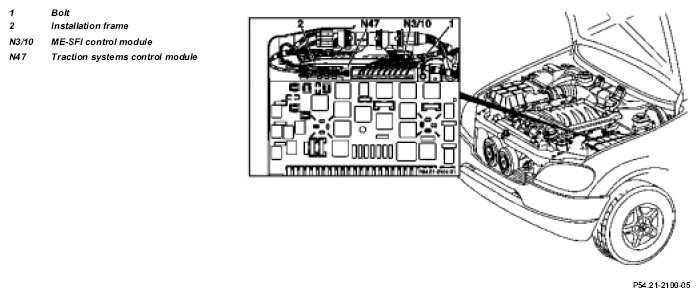

| 2 | Disconnect connector on traction systems control module (N47) | |
| 3 | Remove traction systems control module upwards | |
| 4 | Install in the reverse order | |
| 5 | Check correct coding of the brake |
