Electronic compass, location/purpose/design - GF54.50-P-4101GH
MODEL 163 as of 1.9.00 with CODE (245) Trip computer

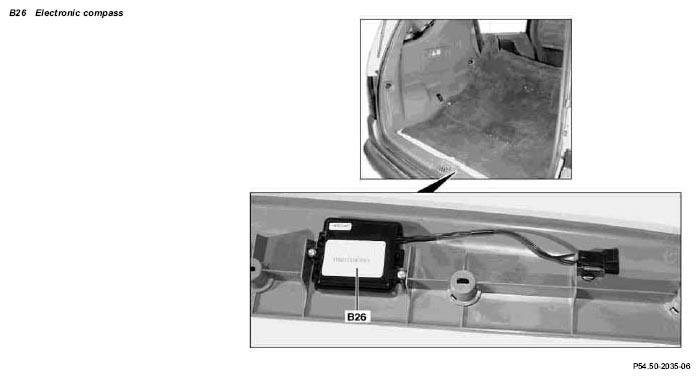

| Electronic compass, location | The electronic compass (B26) can be found below the cover for the trunk sill. | |
| Electronic compass, purpose | GF54.50-P-4101-01GH | |
| Electronic compass, design | The electronic compass (B26) is housed in a plastic casing. The two measuring coils are mounted perpendicular to one another on a circuit board. The 4-pin connector is connected to the electronic compass (B26) via a piece of cable. |
