ME-SFI control unit - location - GF07.61-P-5000-01GA

Model 463

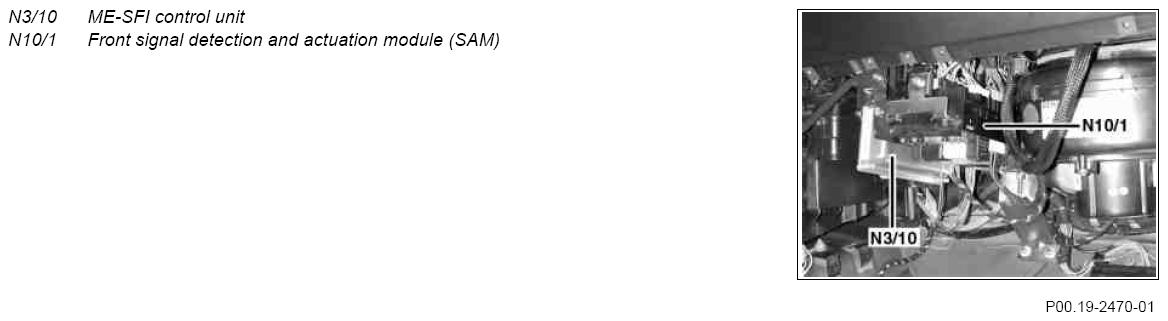

Fig 1: Identifying ME-SFI Control Unit And Front Signal Detection And Actuation Module
G07870984Courtesy of MERCEDES-BENZ USA

The ME-SFI [ME] control unit is located above on the left in the front passenger footwell.
