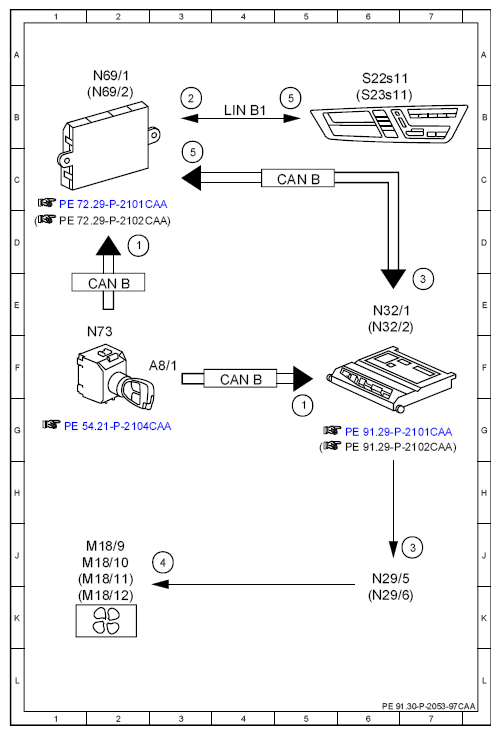

| 1 |
Circuit 15, status |
|
| 1 |
Circuit 15, status |
|
| 2 |
Seat ventilation switch, status |
|
| 3 |
Seat ventilation, request |
|
| 3 |
Seat ventilation, request |
|
| 4 |
Seat ventilation, actuation |
|
| 5 |
Seat ventilation status indication, signal |
|
| 5 |
Seat ventilation status indication, signal |
|
| A8/1 |
Transmitter key |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| CAN B |
Interior CAN |
|
| LIN B1 |
Front door LIN |
|
| M18/10 |
Left front seat backrest ventilation motor group |
|
| M18/11 |
Right front seat cushion ventilation motor group |
|
| M18/12 |
Right front seat backrest ventilation motor group |
|
| M18/9 |
Left front seat cushion ventilation motor group |
|
| N29/5 |
Left front seat ventilation blower regulator |
|
| N29/6 |
Right front seat ventilation blower regulator |
|
| N32/1 |
Left front seat control unit |
|
| N32/2 |
Right front seat control unit |
|
| N69/1 |
Left door control unit |
|
| N69/2 |
Right door control unit |
|
| N73 |
EIS [EZS] control unit |
|
| S22s11 |
Seat ventilation switch |
|
| S23s11 |
Seat ventilation switch |
|
