PTS control unit, location / task - GF54.65-P-4100T

MODEL 211.0 /2 with CODE (220a) Parktronic system (PTS)

Shown on model 211.0

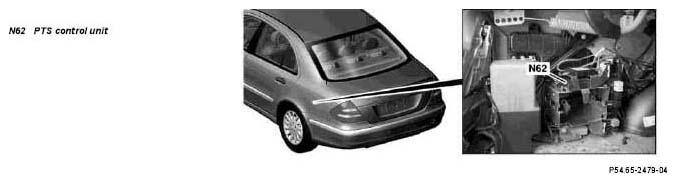

N62 PTS control unit

Fig 1: Identifying PTS Control Unit, Location - Shown On Model 211.0
G04984392
  PTS control unit, location   The Parktronic control unit(N62) is mounted in the trunk behind the left paneling.
  PTS control unit, task
  • Actuation of the sensors
  • Evaluation of echo journey times
  • Bidirectional data transfer from and to the PTS warning displays
  • System checks
  • Data exchange with CAN class B
