Install cross member and weld in - AR64.20-P-1060-03T
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-01A | Electrode miller |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1038-02A | Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany |
| WH58.30-Z-1003-29A | Hand riveter |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1001-05A | Two-post lifting platform |
| WE58.40-Z-1003-14A | Blind rivet tool |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-01A | Sealant | A 001 989 63 20 |
| BR00.45-Z-1003-05A | Preservation agent | A 000 986 72 70 05 |
| BR00.45-Z-1001-13A | Rivet | A 003 990 35 97 |

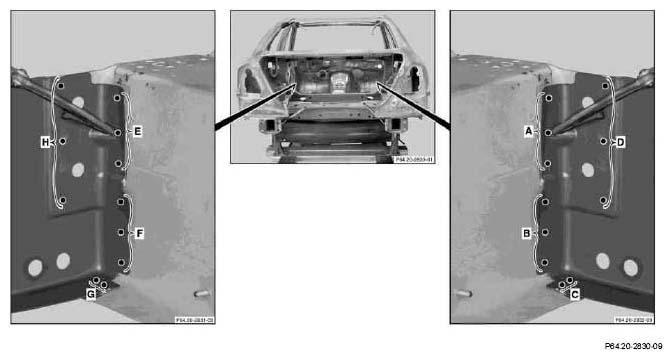

- Install, fit rear cross member (flush with holes, positive) and fix with clamping pliers.
- Drill 6.5 mm dia. rivet holes (areas A and E).
- Remove rear cross member.
- Deburr rivet holes on both sides
- Install rear cross member, fit and fasten with pop-up rivets with locking thread and clamping pliers.
cross member (areas B, D, F and H).

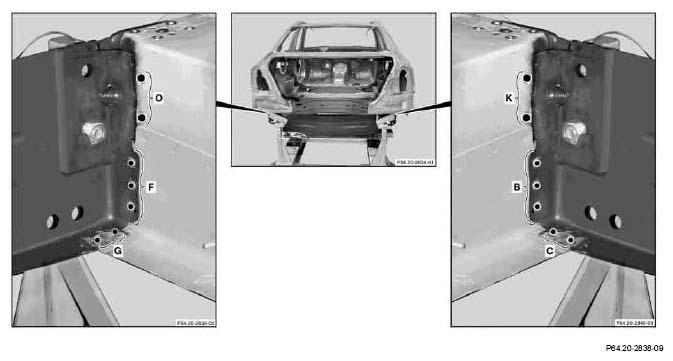

- Rivet rear cross member with Ø 6.4 x 14 mm Polygrip flat head rivets (areas A and E).
In the event of damage of reinforcement (1) left and /or right.
- Install rear cross member, fit and fasten with straightening member and clamping pliers.

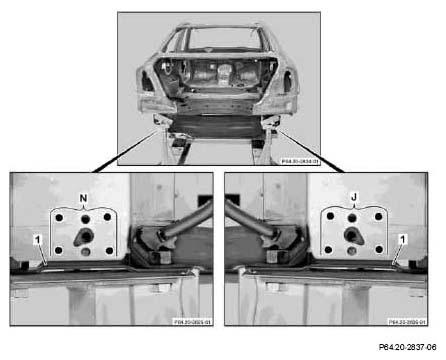

- Drill 6.5 mm dia. rivet holes (areas J and N).
- Remove rear cross member.
- Deburr rivet holes on both sides
- Install rear cross member, fit and fasten with straightening member and pop-up rivets with locking thread.
- Rivet rear cross member with Ø 6.4 x 14 mm Polygrip countersunk head rivets (areas J and N).
- Rivet rear cross member with 6.4 x 14 mm Polygrip flat head rivets (areas K and O).
