Arrangement and assignment of the wiring and plug connectors, interior compartment (right) - GF00.19-U-1000-05DA

MODEL 211

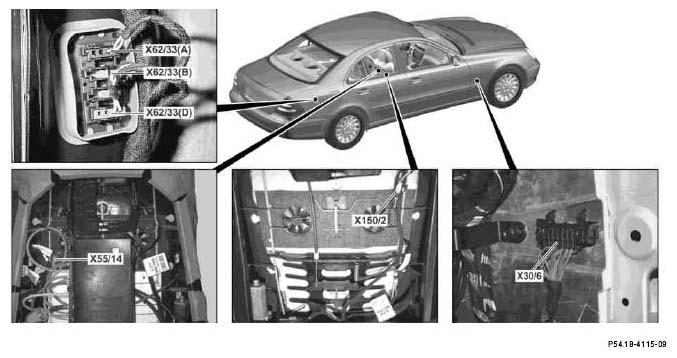

Fig 1: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Right) (1 Of 3)

Fig 2: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Right) (2 Of 3)

Fig 3: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Right) (3 Of 3)

Item	Designation	Cable colors		Cable colors	Notes
X30/6	Right voltage distributor (CAN) connector		1	BNBK	Connector 1
			1	BN
			1	BNRD	Connector 2,3,4,5,6,8,9,11
			1	BN

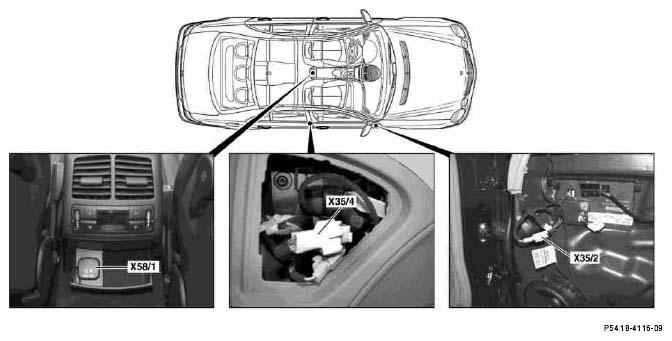

X35/2	Right front door separation point	BNGN	2.1	BNBK
		BNGN
		GN	2.2	BK
		GN
		BNYE	4.1	BNYE
		BUYE	4.2	BUYE
		BN	5.1	BN
		YE	5.2	GY
X35/4	Right rear door separation point
	UP TO 02/03	WHBN	1.1	RDGY
		RDVT	1.2	BKVT
	AS OF 03/03	RDVT	1.1	RDGY
		WHBN	1.2	BKVT
		BNGN	2.1	BNWH
		GN	2.2	WH
		BNBK	4.1	BNBK
		BN	4.2	BN
		BNYE	4.3	BNYE
		BUYE	4.4	BUYE
		GY	5.1	GY
		BN	5.2	BN
		BN	5.3	BN
		RDWH	5.4	RDWH

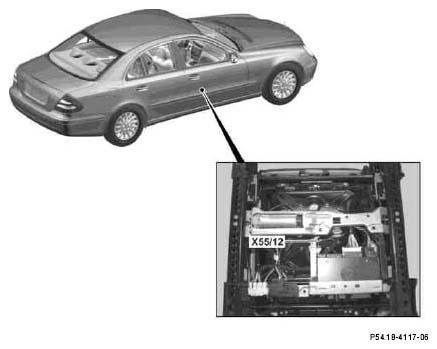

X55/12	Right seat cushion ventilation motor connector	RDYE	1	RDGY
		BN	2	BN
X55/14	Right seat backrest ventilation motor connector	RDYE	1	RDGN
		BN	2	BNYE
X58/1	Interior socket
	UP TO 08/03		1	RDVT
			2	BN
			3	GYBU
	AS OF 09/03		1	BN
			2	BKYE
X62/33 (A)	Right rear axle electrical distributor connector		1	BN
			2	BNGY
X62/33 (B)	Right rear axle electrical distributor connector	YEBU	1	YEBU
		YEBN	2	YEBN
		BKRD	3	BKRD
			4
X62/33 (D)	Right rear axle electrical distributor connector		1	WHGN
			2	WH
X150/2	Front passenger NECK-PRO head restraint solenoid separation point	BN	1
	AS OF 06/05	BUYE	2
