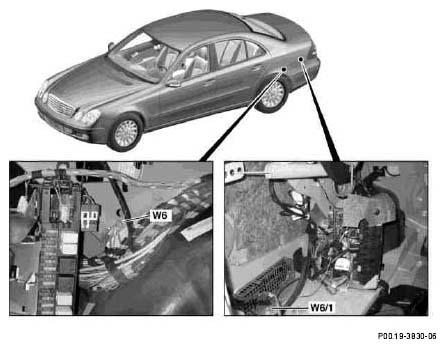

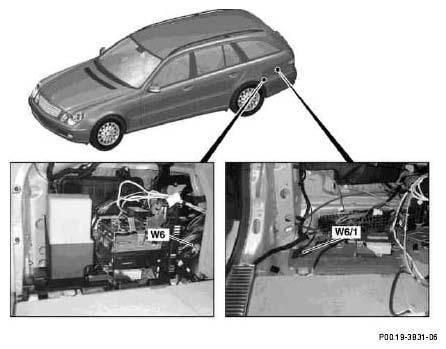

Arrangement and assignment of ground terminals, trunk (left) - GF00.19-U-2000-06DA
MODEL 211
| Ground point | Designation | Comp. | Designation | Conn. pin |
|---|---|---|---|---|
| W6 | Ground (left wheelhousing in trunk) | → C3 | Electrolytic capacitor (rear window noise suppressor) | 1 |
| Sedan | → K74 | Rear screen blind relay | 6 | |
| M113, M272, M273, M642, M648 | → M3 | Fuel pump (FP) | 2 | |
| M112 | → M3 | Fuel pump (FP) | 1 | |
| → N10/2 | Rear SAM control module with fuse and relay module | 1.2 | ||
| → N70 | Overhead control panel control module | C.4 | ||
| → N93/1 | Audio gateway control module | 2.3 | ||
| Wagon, as of 06/07 | → N121 | TLC [HDS] control module | 1.11 | |
| → R1 | Heated rear window | 2 | ||
| up to 08/06 | → S62/21 | Keyless Go trunk lid pushbutton | 1 | |
| → X25/8 | Overhead control panel and FFS [RBA] connector | 6.1 7.1 |
||
| → X36/3 | Fuel pump wiring harness connector | 5 | ||
| Super Low Emission | → X36/3 | Fuel pump wiring harness connector | 1 | |
| Sedan | → Z6/20z1 | Tailgate ground connector sleeve | ||
| Sedan | → Z6/20z2 | Tailgate ground connector sleeve | ||
| → Z6/42z1 | Ground W6 connector sleeve | |||
| W6/1 | Ground (left taillamp in trunk) | → M40 | Multicontour seat pneumatic pump | 1.3 |
| → M40/1 | Pneumatic pump for dynamic seat control | 1.3 | ||
| Wagon, up to 05/07; | → N121 | TLC [HDS] control module | 1.11 | |
| Sedan | → N121 | TLC [HDS] control module | 1.11 | |
| → Z6/20z2 | Tailgate ground connector sleeve |
