Remove/install left or right rear axle speed sensor - AR42.40-P-0820T

MODEL 211

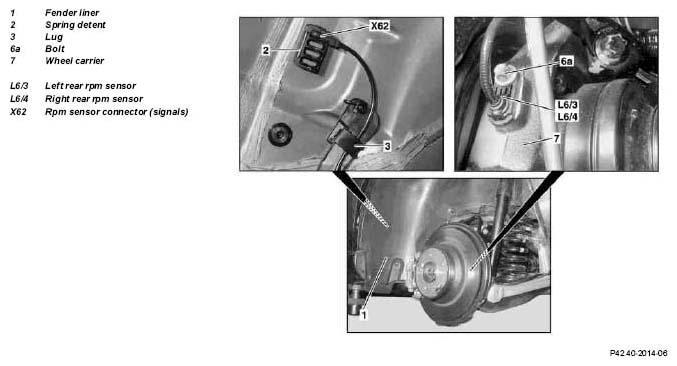

Fig 1: Identifying Left Or Right Rear Axle Speed Sensor Components

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove rear wheel
	Remove and install wheels		AP40.10-P-4050Z
2	Remove fender liner (1) from rear fender		AR88.10-P-1400T
3	Unplug rpm sensor connector (X62)	To do this, lever open spring detent (2) with screwdriver.
4	Expose electrical feed line to rpm sensor (L6/3, L6/4)	To do this, open catches (3) of cable duct and unclip electric lead from retaining clamps. Installation:  Ensure lines are installed correctly.
5	Remove bolt (6a) on rpm sensor (L6/3, L6/4)		*BA42.30-P-1001-02A
6	Pull rpm sensor (L6/3, L6/4) out of wheel carrier (7)
7	Install in the reverse order
8	Read out diagnostic trouble code memory using STAR DIAGNOSIS and erase if necessary	STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

REAR AXLE RPM SENSOR

Number	Designation		Model 211
BA42.30-P-1001-02A	Self-locking bolt of rear axle rpm sensor to wheel carrier	Nm	8

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
