Disconnect electrical connector - AR42.10-P-1040-04TV

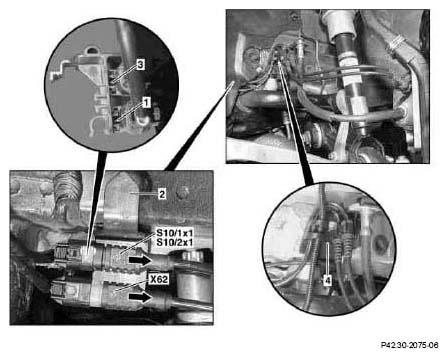

- Press detent (1) upwards with screwdriver and pull rpm sensor connector (signals) (X62) out of the bracket (2) in the direction of the arrow.
- Press detent (3) upwards with screwdriver and pull left front brake pad contact sensor connector (S10/1x1) and right front brake pad contact sensor connector (S10/2x1) out of the bracket (2) in the direction of the arrow.
Illustration in mirror reverse to front right longitudinal member
- Unlock and disconnect rpm sensor connector (signals) (X62) and brake pad contact sensor.
- Unclip electrical cable from bracket (4) on side member.
Installation: Ensure lines are installed correctly.
