| 1.1 |
Position both front seat cushions upright |
On vehicles with code (287a) Through-loading possibility
See operator's manual. |
|
| 1.2 |
Remove rear seat cushion |
On vehicles without code (287a) Through loading possibility |
AR91.12-P-1020T |
| 2 |

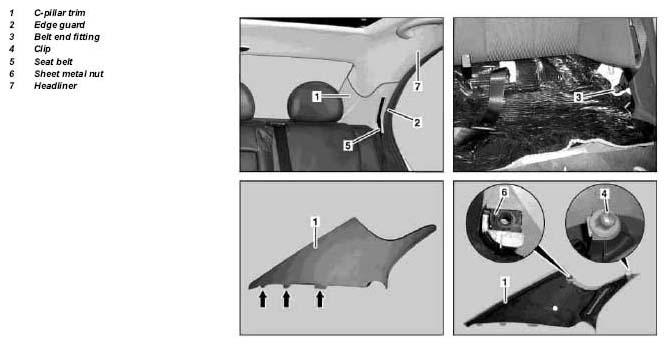

Remove edge guard (2) in area of C-pillar trim (1) |
|
|
| 3 |
Remove belt end fitting (3) |
|
|
| 4 |
Unclip C-pillar trim (1) from clip (4) |
|
|
| 5 |
Pull C-pillar trim (1) approx. 2 to 3 cm toward front, slightly tilt in direction of center of vehicle and remove from C-pillar toward front. |
While doing this, pull seat belt (5) through passage out of C-pillar trim (1). |
|
 |
Installation |
|
|
| 6 |
Insert sheet metal nut (6) into C-pillar trim (1) |
When removing C-pillar trim (1) sheet metal nut (6) remains in mount at C-pillar |
|
| 7 |
Pull seat belt (5) through passage in C-pillar trim (1) |
Do not twist seatbelt (5) |
|
| 8 |
Insert C-pillar trim (1) into rear shelf on guides (arrows) |
Hold C-pillar trim (1) tilted slightly in direction of center of vehicle |
|
| 9 |
Clip C-pillar trim (1) to C-pillar |
Ensure proper transition to headliner (7). |
|
| 10 |
Install belt end fitting (3) |
Do not install seat belt (5) when twisted. |
|
| |
|
 |
*BA91.40-P-1012-01A |
| 11.1 |
Install rear seat cushion |
On vehicles without code (287a) Through loading possibility |
AR91.12-P-1020T |
| 11.2 |
Fold both rear seat cushions down and lock |
On vehicles with code (287a) Through-loading possibility
See operator's manual. |
|
