Remove/install paneling on A-pillar - AR68.30-P-4050TA

MODEL 211.0 /2 /6

Footwell paneling

Shown on paneling on left

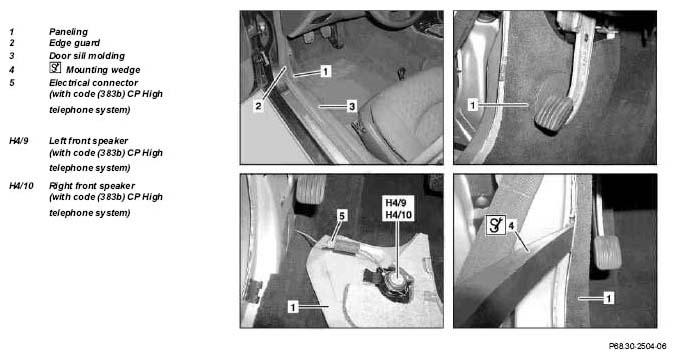

Fig 1: Identifying Paneling On A-Pillar

	Remove/Install
1	Remove edge guard (2) in area of paneling (1)
2	Unclip door sill molding (3) with mounting wedge (4)	Only unclip front piece.
			Figure
3	Unclip paneling (1) from A-pillar toward rear with mounting wedge (4)		Figure
4.1	Disconnect electrical connector (5) from left front speaker (H4/9) or right front speaker (H4/10)	On vehicles with code (383b) CP High telephone system
5	Remove paneling (1)
6	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
