Remove/install electric sun shade for rear window - AR68.50-P-4600T
MODEL 211.0 with CODE (540a) Electric roller blind for rear window
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove rear shelf paneling (2) | On vehicles without code (287a) through loading feature | AR68.30-P-4580TB |
| On vehicles with code (287a) through-loading feature | AR68.30-P-4580TC | ||
| 2 | Unscrew nuts (3) | ||

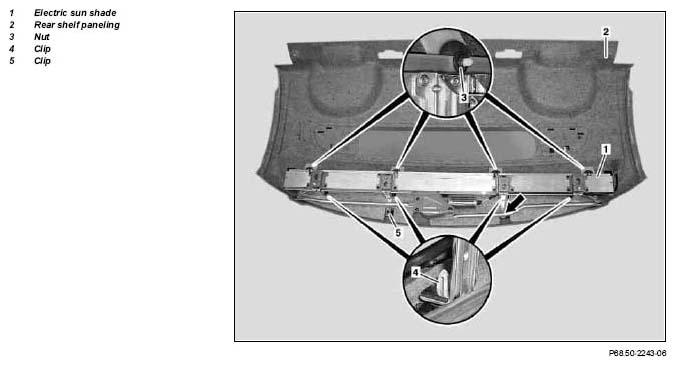

| 3 | Unclip electric sun shade (1) from clips (4, 5) and from concealed clip (arrow) and remove from rear shelf paneling (2) | ||
| 4 | Install in the reverse order |
