Condensation in mirror turn signal - AF82.10-P-4010UA

MODEL 211.### ## up to 026875

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text
P	023623	INSTALL ADDITIONAL CONDENSED WATER DRAIN ON TURN SIGNAL LAMP IN OUTSIDE REARVIEW MIRROR; LOCATION......

Damage code	Cause	Remedy
82 227 04	Moisture deposits on mirror lens caused by mirror's design	Do not replace turn signal! The moisture in the turn signal does not impair the function.
		1 Remove covering on outside rearview mirror. Turn signal lamp can remain in mirror housing.	AR88.70-P-9040T
		2 Melt additional vent hole (diameter 2-3 mm) at suitable point with soldering iron Do not drill, because shavings would fall into housing. Do not remove the bead that results from melting. It prevents penetration of water.
		3 Install outside rearview mirror covering.	AR88.70-P-9040T

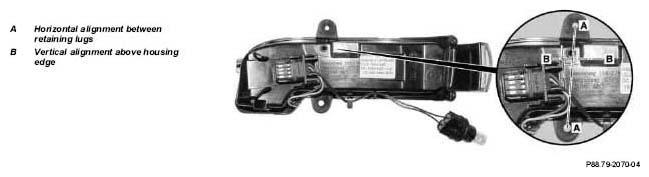

Illustrated with turn signal lamp removed.

Fig 1: Identifying Vertical Alignment Above Housing Edge

G04987555
