Remove/install lamp carrier for taillamp - AR82.10-P-4906TA
MODEL 211.2/ 6

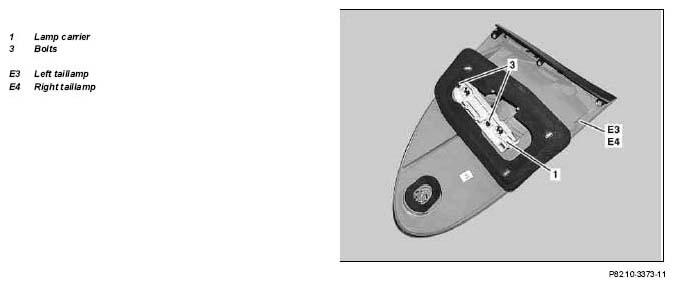

Shown on left taillamp (E3)

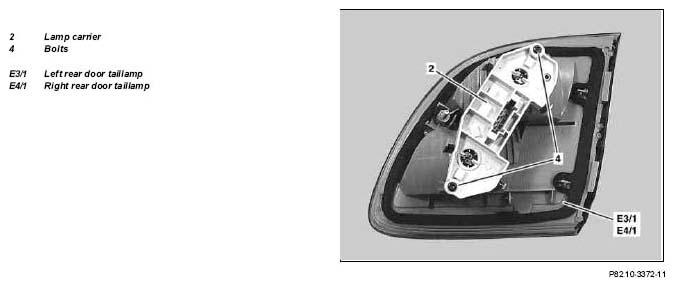

Shown on taillamp for left rear-end door (E3/1)
Fig 2: Identifying Lamp Carrier For Taillamp Components (Shown On Taillamp For Left Rear-End Door (E3/1))
| Remove/Install | |||
|---|---|---|---|
| 1.1 | Remove left taillamp (E3) or right taillamp (E4) from sidewall | Only applies to removal of lamp carrier (1) of left taillamp (E3) or right taillamp (E4). | AR82.10-P-4920T |
| 2.1 | Undo screws (3) and remove lamp carrier (1) from left taillamp (E3) or right taillamp (E4) | Only applies to removal of lamp carrier (1) of left taillamp (E3) or right taillamp (E4). | |
| 3.1 | Remove left rear-end door taillamp (E3/1) or right rear-end door taillamp (E4/1) | Only applies to removal of lamp carrier (2) of left rear-end door taillamp (E3/1) or right rear end door taillamp (E4/1). | AR82.10-P-4925T |
| 4.1 | Undo screws (4) and remove the lamp carrier (2) of the left rear-end door taillamp (E3/1) or right rear-end door taillamp (E4/1) | Only applies to removal of lamp carrier (2) of left rear-end door taillamp (E3/1) or right rear end door taillamp (E4/1). | |
| 5 | Install in the reverse order |
