Remove/install lamp carrier for taillamp - AR82.10-P-4906T
MODEL 211.0

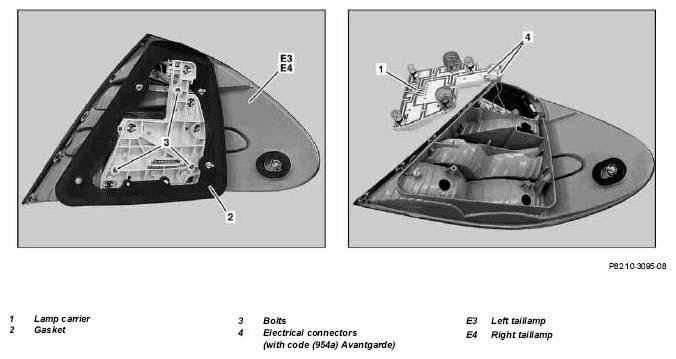

Fig 1: Identifying Lamp Carrier For Taillamp Components (Shown On Left Taillamp With Code (954A) Avantgarde)
Shown on left taillamp with code (954a) Avantgarde
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove left taillamp (E3) or right taillamp (E4) | AR82.10-P-4905T | |
| 2 | Detach gasket (2) from left taillamp (E3) or right taillamp (E4) | ||
| 3 | Remove screws (3) and remove lamp carrier (1) from left taillamp (E3) or right taillamp (E4) | ||
| 4.1 | Unplug electrical connectors (4) and remove lamp carrier (1) | Only on vehicles with code (954a) Avantgarde | |
| 5 | Install in the reverse order |
