Remove/install audio components center - AR82.60-P-7605T
MODEL 211.0
Audio gateway control unit
| Remove/Install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Transfer basic data of audio gateway control unit (N931) to STAR DIAGNOSIS | Only when replacing audio gateway control unit (N93/1) |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Diagnosis system STAR DIAGNOSIS | *WH58.30-Z-1048-13A | ||
| 2 | Release SAM control unit with fuse and relay box in luggage compartment and put to side with lines connected | AR54.21-P-1258T | |
| 3.1 | Remove pressurized-type reservoir for dynamic seat control | Only on vehicles with code (433) left dynamic seat, incl. multicontour seat or code (434) right dynamic seat, incl. multicontour seat | AR91.25-P-1570T |
| 4.1 | Unclip bracket (6) and put wiring harness (8) to side | Only on vehicles with code (881b) remote trunk closing (RTC) | |
| 5.1 | Remove expansion rivet (7) and take off cover (5) | Only on vehicles with code (881b) remote trunk closing (RTC) | |
| 6.1 | Unclip TLC [TLC] control unit (N121) from bracket and put to side with lines attached | Only on vehicles with code (881b) remote trunk closing (RTC) | |

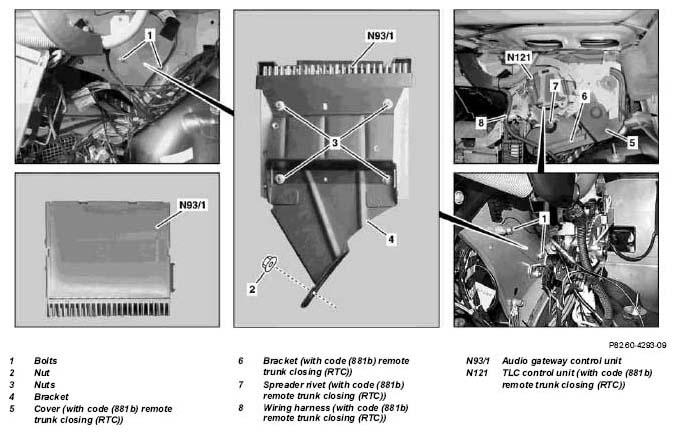

| 7 | Remove bolts (1) | ||
| 8 | Unscrew nuts (2) | ||
| 9 | Remove audio gateway control unit (N93/1) until electric plug sockets at audio gateway control unit (N93/1) are accessible | ||
| 10 | Unplug electrical plug sockets on audio gateway control unit (N93/1) | ||
| 11 | Detach coupling for fiber optical cable on audio gateway control unit (N93/1) | ||
| 12 | Cover fiber optic cable | AR82.95-P-0005-01A | |
| 13.1 | Unscrew nuts (3) and remove audio gateway control unit (N93/1) from bracket (4) | Only when replacing audio gateway control unit (N93/1) | |
| 14 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
