Remove/install trim on C-pillar - AR68.30-P-4490TA

MODEL 211.2

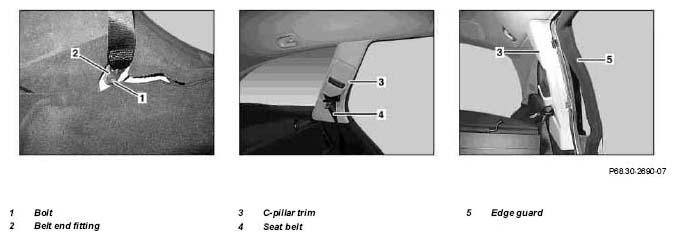

Fig 1: Identifying Trim On C-Pillar

G04985485

Shown on left C-pillar trim

	Remove/Install
1	Fold right rear seat cushion toward front	See operating instructions.
2.1	Fold left rear seat cushion toward front	Only when removing left C-pillar trim (3). See operating instructions.
3	Unscrew bolt (1) and remove belt end fitting (2)		*BA91.40-P-1012-01A
4	Fold right rear seat backrest toward front	See operating instructions.
5.1	Fold left rear seat backrest toward front	Only when removing left C-pillar trim (3). See operating instructions.
6	Loosen edge guard (5) in area of C-pillar trim (3)
7	Loosen C-pillar trim (3) with mounting wedge		Figure
8	Remove C-pillar trim (3) and insert seatbelt (4)
9	Install in the reverse order

TORQUE SPECIFICATION

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS TIGHTENING TORQUE

Number	Designation		Model 211
BA91.40-P-1012-01A	Bolt, belt end fitting to vehicle floor	Nm	32

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

G04985486
