Information on measuring tire tread depth - AH40.10-P-0006-01T
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
All models

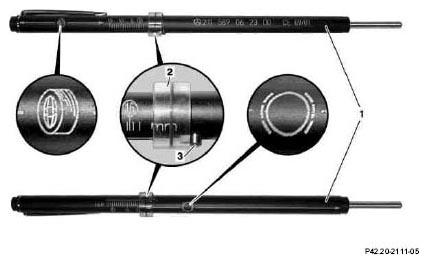

The brake pad gauge (1) is suitable for measuring the:
- tire tread depth
- brake lining thickness of the outer brake pads with the wheels still fitted
The symbols and arrows identify which side of the brake pad gauge (1) should be used for the corresponding measurement.

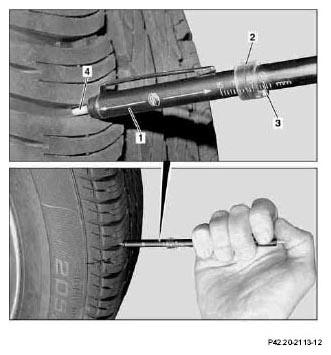

Information for measuring tire tread depth:
Bring the slide (2) into contact with the driver (3) before each measurement, otherwise there will be measurement errors.
Mount brake pad gauge (1) on two profile segments at the point of the most severe tire wear.
Push measuring drift (4) in the tread groove until it contacts the groove bottom.
The gauge pin (4) must not be resting on the tire-wear indicator.
Remove brake pad gauge (1) to read off the measured value.
