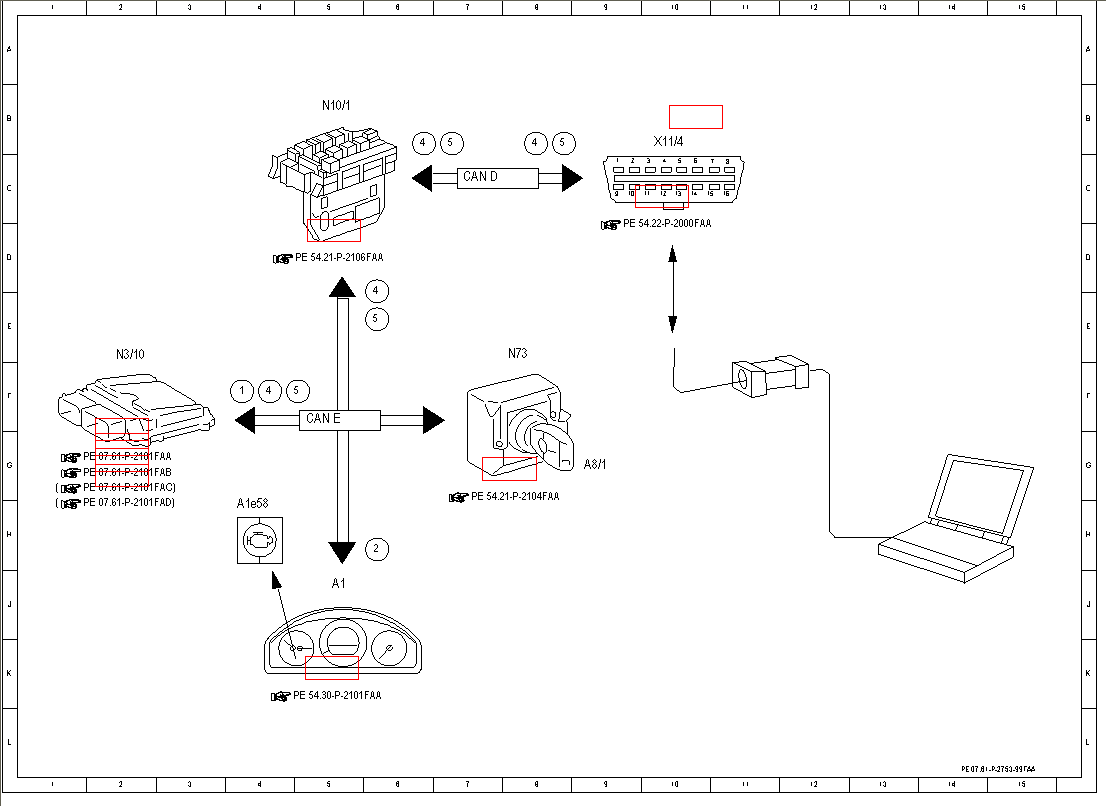

electrical function schematic, diagnosis of the engine control ME - PE07.61-P-2753-99FAA
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 271, 272 in MODEL 204 up to model year 08 /AEJ 07
| Code | Designation | Position |
|---|---|---|
| 1 | Circuit 15, status | 4F |
| 2 | Engine diagnosis indicator lamp, actuation | 6H |
| 4 | Engine control diagnosis, communication | 4F |
| 4 | Engine control diagnosis, communication | 6E |
| 4 | Engine control diagnosis, communication | 6B |
| 4 | Engine control diagnosis, communication | 8B |
| 5 | Correction programming, communication | 4F |
| 5 | Correction programming, communication | 6E |
| 5 | Correction programming, communication | 7B |
| 5 | Correction programming, communication | 8B |
| A1 | Instrument cluster | 5J |
| A1e58 | Engine diagnosis indicator lamp | 4H |
| A8/1 | Transmitter key | 9G |
| CAN D | Diagnostic CAN | 7C |
| CAN E | Chassis CAN | 5G |
| N10/1 | Front SAM control unit with fuse and relay module | 5B |
| N3/10 | ME-SFI [ME] control unit | 2F |
| N73 | Electronic ignition switch control unit | 8F |
| X11/4 | Diagnostic connector | 10C |
