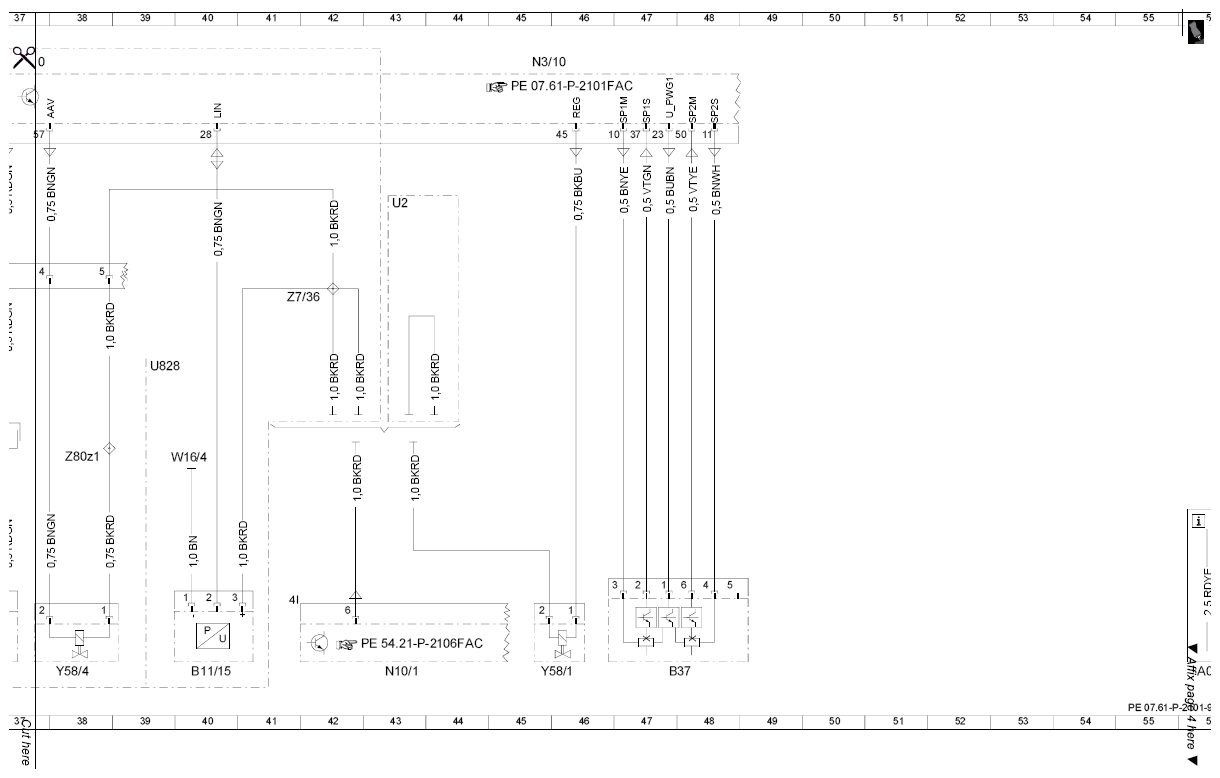

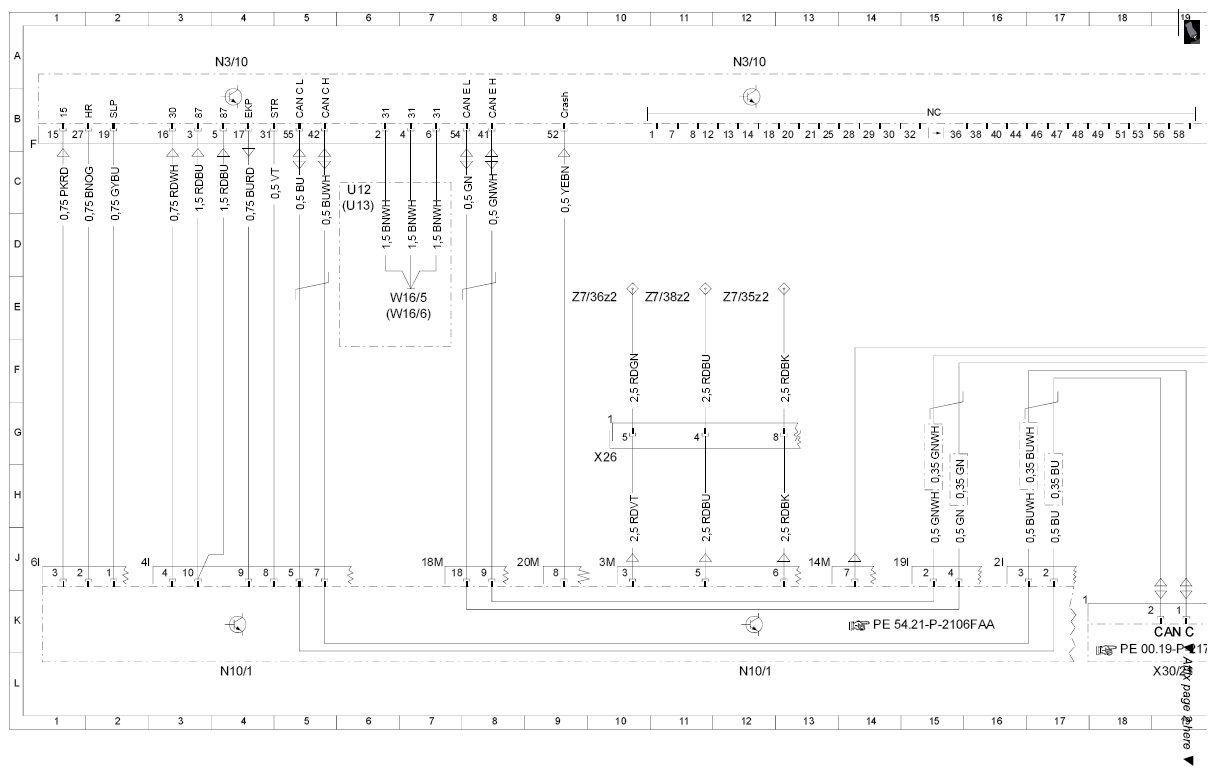

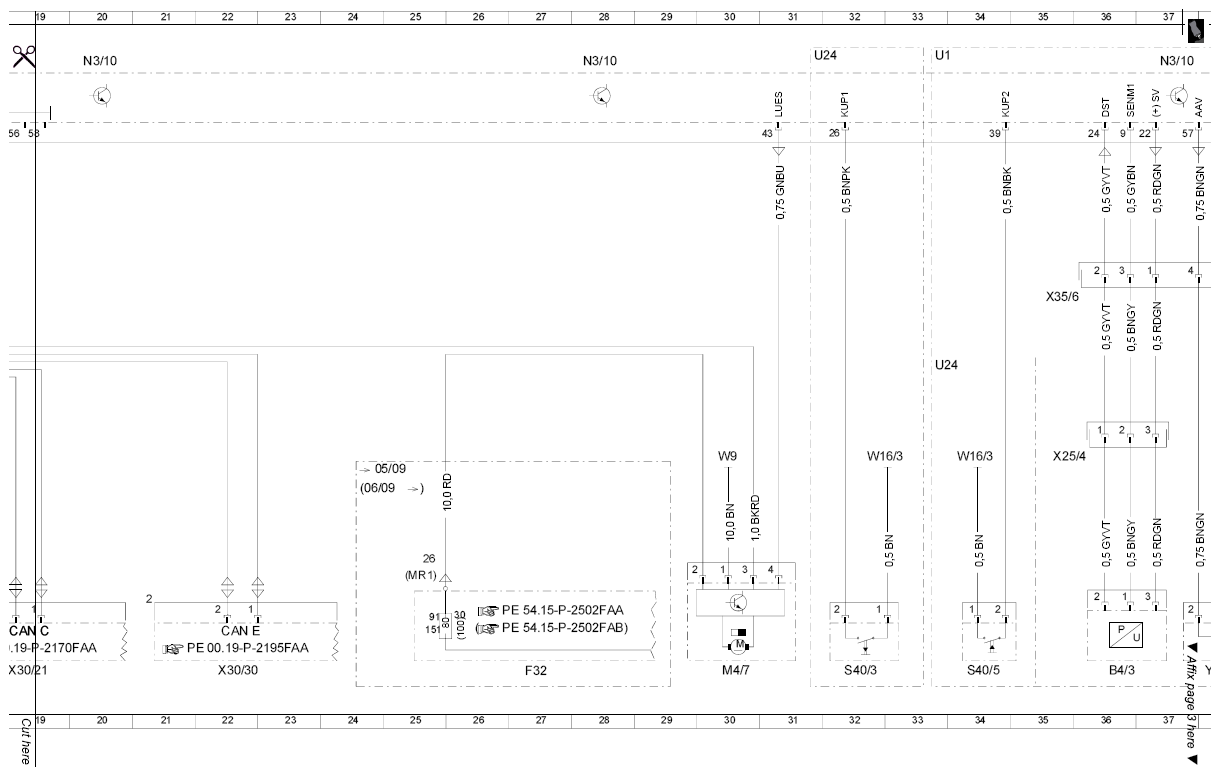

Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-99FAD
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|

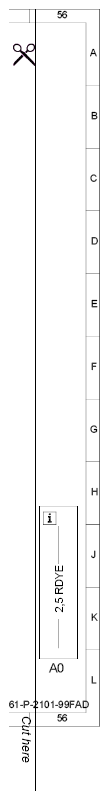

| A0 | Explanation of color codes | 48L |
| B11/15 | PremAir sensor | 38L |
| B37 | Accelerator pedal sensor | 45L |
| B4/3 | Fuel tank pressure sensor | 35L |
| CAN C | Drive train CAN | 19K |
| CAN E | Chassis CAN | 22K |
| F32 | Front electrical prefuse box | 26L |
| F32f91 | Prefuse 91 | 24K |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 29L |
| N10/1 | Front SAM control module with fuse and relay module | 4L |
| N10/1 | Front SAM control module with fuse and relay module | 12L |
| N10/1 | Front SAM control module with fuse and relay module | 41L |
| N3/10 | ME-SFI [ME] control module | 4A |
| N3/10 | ME-SFI [ME] control module | 12A |
| N3/10 | ME-SFI [ME] control module | 20A |
| N3/10 | ME-SFI [ME] control module | 28A |
| N3/10 | ME-SFI [ME] control module | 36A |
| N3/10 | ME-SFI [ME] control module | 43A |
| S40/3 | Clutch pedal switch | 31L |
| S40/5 | Start enable clutch pedal switch | 32L |
| U1 | Valid for USA | 32A |
| U12 | Valid for left-hand steering | 6C |
| U13 | Valid for right-hand steering | 6D |
| U2 | Valid for all except USA | 41D |
| U24 | Valid for manual transmission | 30A |
| U24 | Valid for manual transmission | 32F |
| U828 | Valid for SULEV | 37F |
| W16/3 | Left major assembly compartment ground point | 31H |
| W16/3 | Left major assembly compartment ground point | 32H |
| W16/4 | Right wheelhouse ground point | 38H |
| W16/5 | Left major assembly compartment electronics ground point | 6E |
| W16/6 | Right major assembly compartment ground point | 6E |
| W9 | Left front ground point (at lamp unit) | 29H |
| X25/4 | Fuel tank electrical connector | 34H |
| X26 | Interior and engine wiring harness electrical connector | 10H |
| X30/21 | Drive train CAN voltage distributor electrical connector | 18L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 22L |
| X35/6 | Instrument panel and module box electrical connector | 34E |
| Y58/1 | Purge control valve | 43L |
| Y58/4 | Activated charcoal filter shutoff valve | 36L |
| Z7/35 | Circuit 87 M1e connector sleeve | 11E |
| Z7/36 | Circuit 87M2e connector sleeve | 10E |
| Z7/36 | Circuit 87M2e connector sleeve | 39E |
| Z7/38 | Circuit 87 M1i connector sleeve | 11E |
| Z80 | Cross section reduction connector sleeve | 36H |
