Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-99FAC

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
Code: Designation: Position:
A0 Explanation of color codes 1A
A16/1 Right knock sensor 1A
A16/2 Left knock sensor 1A
A9 Refrigerant compressor 1A
B11/4 Coolant temperature sensor 1A
B2/5 Hot film MAF sensor 1A
B2/5b1 Intake air temperature sensor 1A
B28 Pressure sensor 1A
B28/10 Right intake manifold tumble flap position sensor 1A
B28/9 Left intake manifold tumble flap position sensor 1A
B6/4 Left intake camshaft Hall sensor 1A
B6/5 Right intake camshaft Hall sensor 1A
B6/6 Left exhaust camshaft Hall sensor 1A
B6/7 Right exhaust camshaft Hall sensor 1A
B70 Crankshaft Hall sensor 1A
C4/1 Radio interference suppression capacitor 1 1A
C4/2 Radio interference suppression capacitor 2 1A
G3/3 Left oxygen sensor upstream of catalytic converter 1A
G3/3x1 Electrical connector for left oxygen sensor upstream of catalytic converter 1A
G3/4 Right oxygen sensor upstream of catalytic converter 1A
G3/4x1 Electrical connector for right oxygen sensor upstream of catalytic converter 1A
G3/5 Left oxygen sensor downstream of catalytic converter 1A
G3/5x1 Electrical connector for left oxygen sensor downstream of catalytic converter 1A
G3/6 Right oxygen sensor downstream of catalytic converter 1A
G3/6x1 Electrical connector for right oxygen sensor downstream of catalytic converter 1A
LIN C1 Drive train LIN 1A
M16/6 Throttle valve actuator 1A
M16/6m1 Actuator motor 1A
M16/6r1 Actual value potentiometer 1 1A
M16/6r2 Actual value potentiometer 2 1A
M16/6r3 Sliding contact 1 actual value potentiometer 1A
M16/6r4 Sliding contact 2 actual value potentiometer 1A
N10/1 Front SAM control module with fuse and relay module 1A
N3/10 ME-SFI [ME] control module 1A
N3/10 ME-SFI [ME] control module 1A
N3/10 ME-SFI [ME] control module 1A
N3/10 ME-SFI [ME] control module 1A
N3/10 ME-SFI [ME] control module 1A
N3/10 ME-SFI [ME] control module 1A
N3/10 ME-SFI [ME] control module 1A
N3/10 ME-SFI [ME] control module 1A
N3/10 ME-SFI [ME] control module 1A
N3/10 ME-SFI [ME] control module 1A
R4 Spark plugs 1A
R4 Spark plugs 1A
R4 Spark plugs 1A
R4 Spark plugs 1A
R4 Spark plugs 1A
R4 Spark plugs 1A
S43 Oil level switch 1A
T1/1 Cylinder 1 ignition coil 1A
T1/2 Cylinder 2 ignition coil 1A
T1/3 Cylinder 3 ignition coil 1A
T1/4 Cylinder 4 ignition coil 1A
T1/5 Cylinder 5 ignition coil 1A
T1/6 Cylinder 6 ignition coil 1A
U12 Valid for left-hand steering 1A
U13 Valid for right-hand steering 1A
W11w1 Left cylinder bank ground point (engine) 1A
W11w1 Left cylinder bank ground point (engine) 1A
W11w2 Right cylinder bank ground point (engine) 1A
W11w2 Right cylinder bank ground point (engine) 1A
W16/5 Left major assembly compartment electronics ground point 1A
W16/6 Right major assembly compartment ground point 1A
X205 Tumble flap and intake manifold switchover valves electrical connector 1A
X26 Interior and engine wiring harness electrical connector 1A
Y110 Coolant thermostat 1A
Y16/2 Heating system shutoff valve 1A
Y22/6 Intake manifold switchover valve 1A
Y22/9 Intake manifold tumble flap switchover valve 1A
Y32 Air pump switchover valve 1A
Y49/4 Left intake camshaft solenoid 1A
Y49/5 Right intake camshaft solenoid 1A
Y49/6 Left exhaust camshaft solenoid 1A
Y49/7 Right exhaust camshaft solenoid 1A
Y62/1 Cylinder 1 injection valve 1A
Y62/2 Cylinder 2 injection valve 1A
Y62/3 Cylinder 3 injection valve 1A
Y62/4 Cylinder 4 injection valve 1A
Y62/5 Cylinder 5 injection valve 1A
Y62/6 Cylinder 6 injection valve 1A
Z5 Connector sleeve in wiring harness 1A
Z6 Circuit 31 connector sleeve 1A
Z6 Circuit 31 connector sleeve 1A
Z6 Circuit 31 connector sleeve 1A
Z6/26 Sensor voltage supply connector sleeve 1A
Z7/35 Circuit 87 M1e connector sleeve 1A
Z7/35 Circuit 87 M1e connector sleeve 1A
Z7/35 Circuit 87 M1e connector sleeve 1A
Z7/35 Circuit 87 M1e connector sleeve 1A
Z7/35 Circuit 87 M1e connector sleeve 1A
Z7/36 Circuit 87M2e connector sleeve 1A
Z7/36 Circuit 87M2e connector sleeve 1A
Z7/36 Circuit 87M2e connector sleeve 1A
Z7/36 Circuit 87M2e connector sleeve 1A
Z7/36 Circuit 87M2e connector sleeve 1A
Z7/36 Circuit 87M2e connector sleeve 1A
Z7/38 Circuit 87 M1i connector sleeve 1A
Z7/38 Circuit 87 M1i connector sleeve 1A
Z7/38 Circuit 87 M1i connector sleeve 1A
Z7/38 Circuit 87 M1i connector sleeve 1A
Z7/38 Circuit 87 M1i connector sleeve 1A
Z7/43 Sensor ground connector sleeve 1A
Z7/43 Sensor ground connector sleeve 1A
Z7/44 Sensor ground connector sleeve 1A
Z7/44 Sensor ground connector sleeve 1A

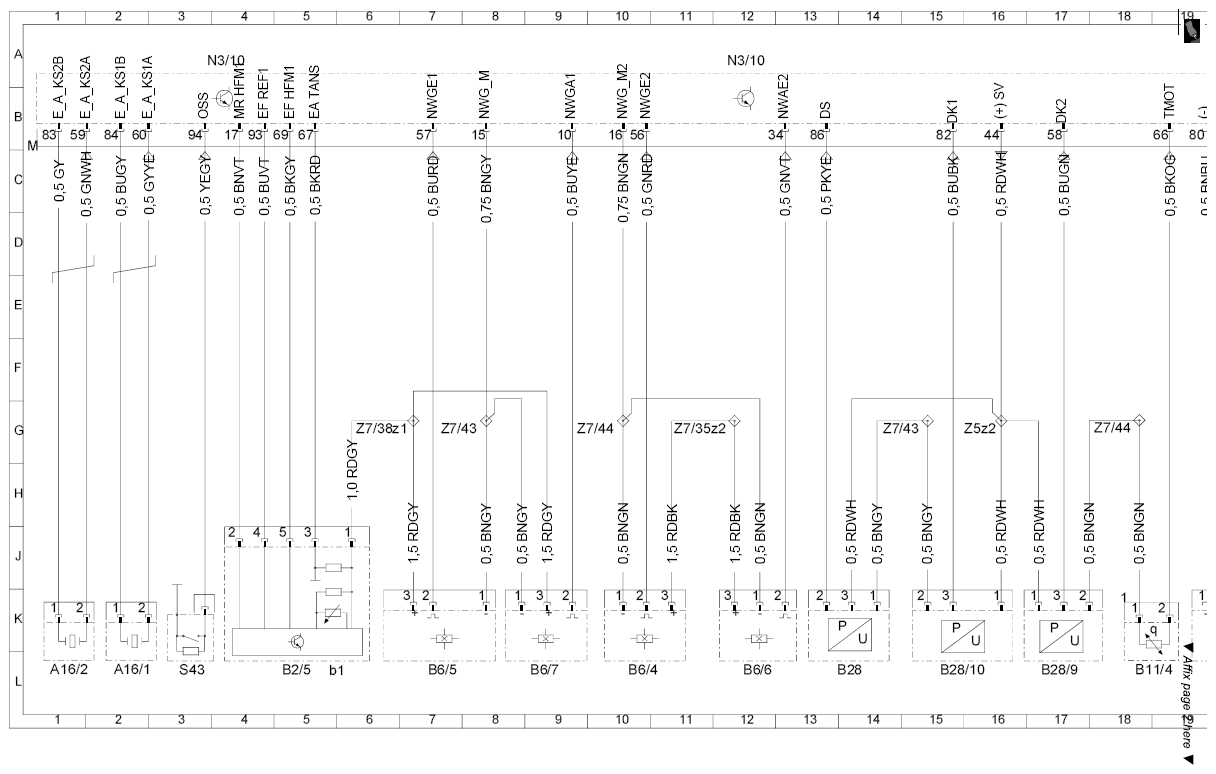

Fig 1: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (1 Of 5)
G07530738Courtesy of MERCEDES-BENZ USA

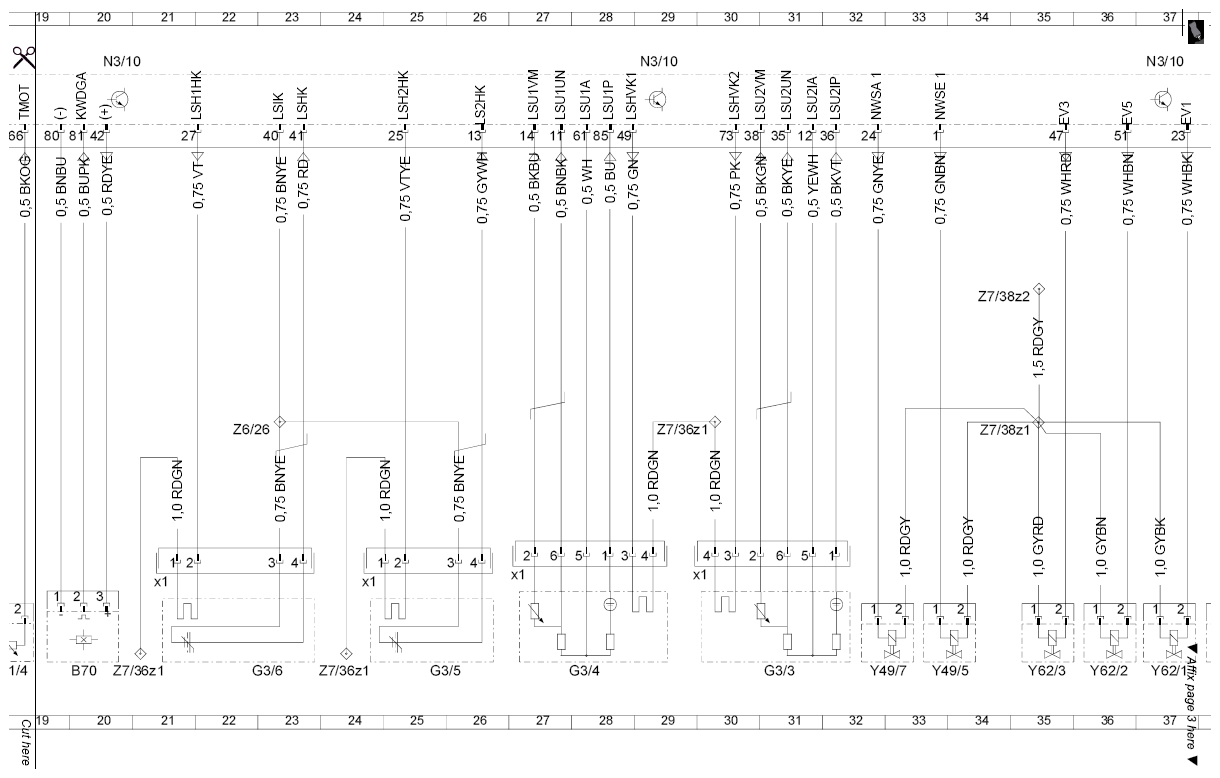

Fig 2: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (2 Of 5)
G07530739Courtesy of MERCEDES-BENZ USA

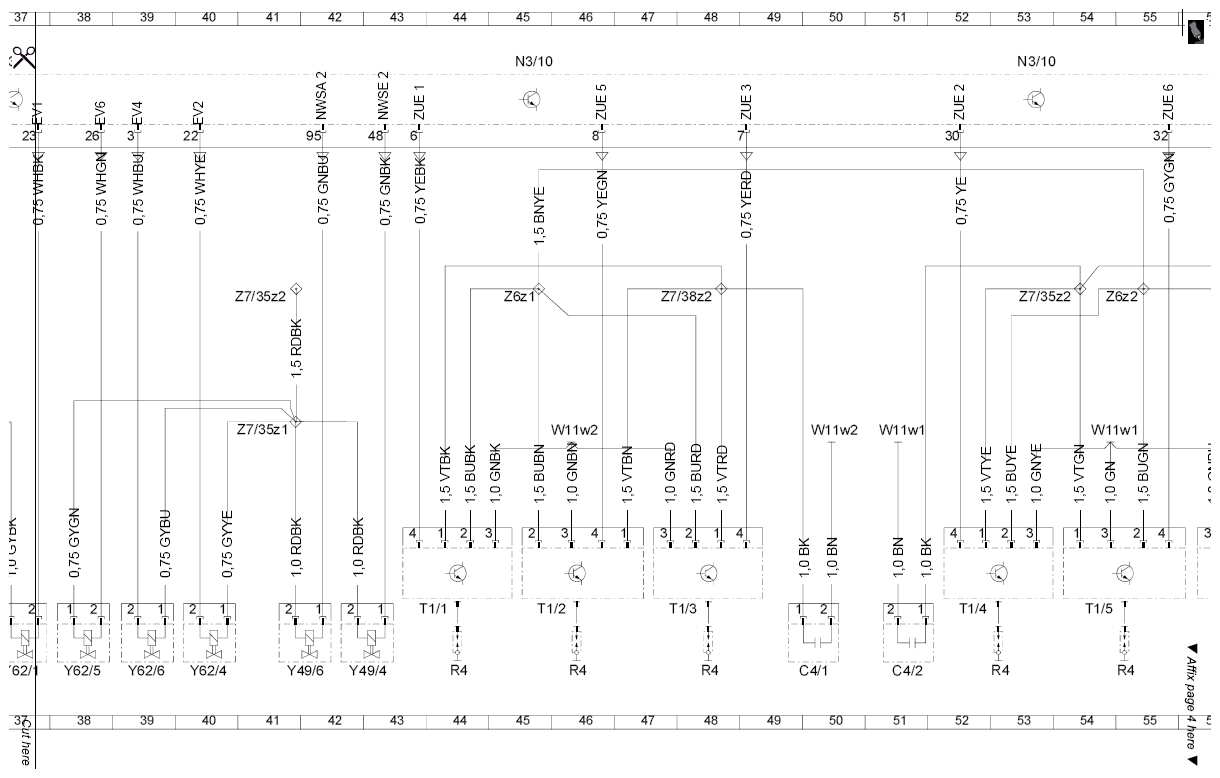

Fig 3: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (3 Of 5)
G07530740Courtesy of MERCEDES-BENZ USA

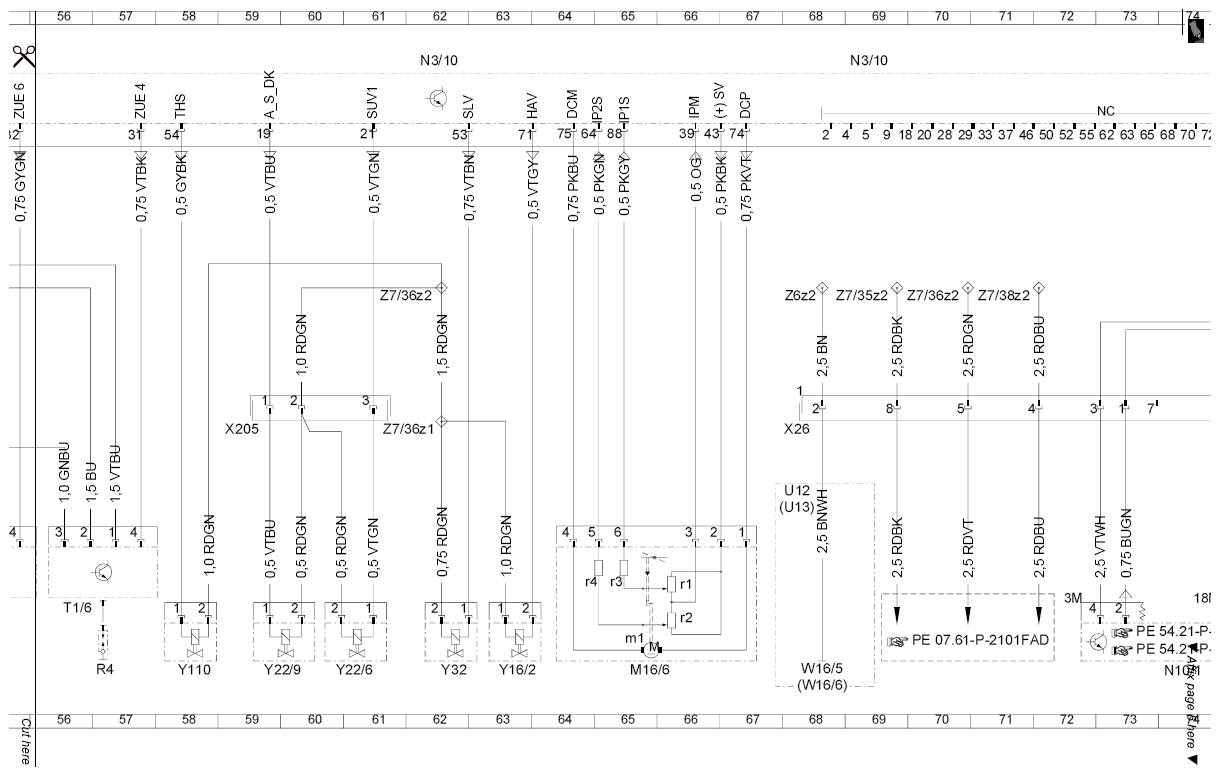

Fig 4: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (4 Of 5)
G07530741Courtesy of MERCEDES-BENZ USA

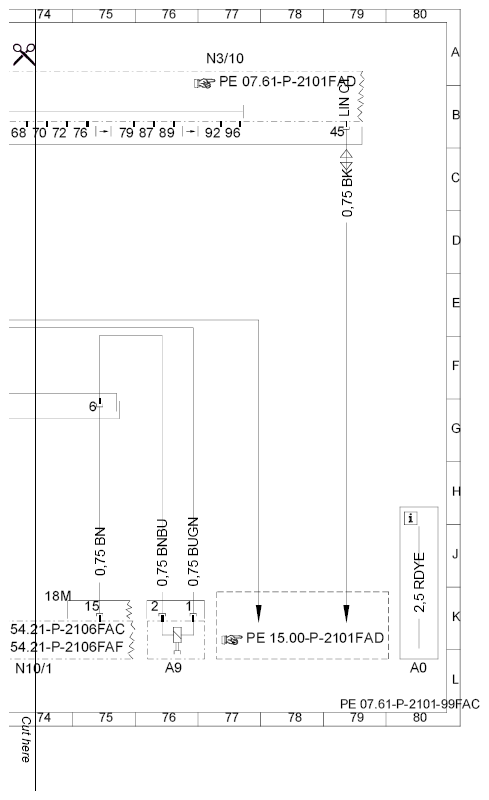

Fig 5: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (5 Of 5)
G07530742Courtesy of MERCEDES-BENZ USA
