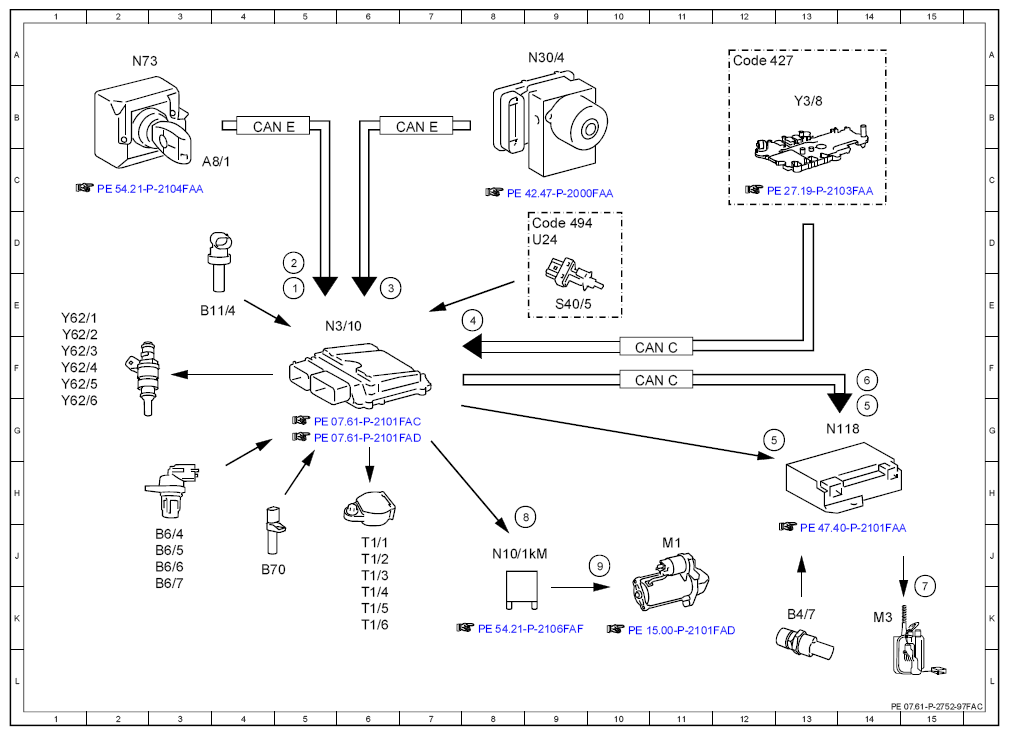

Electrical function schematic, ME engine start - PE07.61-P-2752-97FAC
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 50, status | 5E |
| 2 | DAS [FBS] start enable, status | 5D |
| 3 | Service brake, status | 6E |
| 4 | Selector lever position, status | 8E |
| 5 | Fuel pump, request ON | 12G |
| 5 | Fuel pump, request ON | 14G |
| 6 | Fuel pump, specified pressure request | 14F |
| 7 | Fuel pump, actuation | 15K |
| 8 | Starter circuit 50 relay, actuation | 8H |
| 9 | Starter, actuation | 10J |
| A8/1 | Transmitter key | 3C |
| B11/4 | Coolant temperature sensor | 3E |
| B4/7 | Fuel pressure sensor | 13K |
| B6/4 | Left intake camshaft Hall sensor | 3J |
| B6/5 | Right intake camshaft Hall sensor | 3J |
| B6/6 | Left exhaust camshaft Hall sensor | 3J |
| B6/7 | Right exhaust camshaft Hall sensor | 3K |
| B70 | Crankshaft Hall sensor | 4J |
| CAN C | Drive train CAN | 11F |
| CAN E | Chassis CAN | 5B |
| CAN E | Chassis CAN | 7B |
| Code 427 | 7-speed automatic transmission | 12A |
| Code 494 | USA version | 9D |
| M1 | Starter | 11J |
| M3 | Fuel pump (FP) | 14K |
| N10/1kM | Starter circuit 50 relay | 8J |
| N118 | Fuel pump control unit | 13G |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N30/4 | Electronic Stability Program control unit | 9A |
| N73 | Electronic ignition switch control unit | 2A |
| S40/5 | Start enable clutch pedal switch | 9E |
| T1/1 | Cylinder 1 ignition coil | 6J |
| T1/2 | Cylinder 2 ignition coil | 6J |
| T1/3 | Cylinder 3 ignition coil | 6J |
| T1/4 | Cylinder 4 ignition coil | 6K |
| T1/5 | Cylinder 5 ignition coil | 6K |
| T1/6 | Cylinder 6 ignition coil | 6K |
| U24 | Valid for manual transmission | 9D |
| Y3/8 | Fully integrated transmission control unit | 13B |
| Y62/1 | Cylinder 1 injection valve | 1E |
| Y62/2 | Cylinder 2 injection valve | 1F |
| Y62/3 | Cylinder 3 injection valve | 1F |
| Y62/4 | Cylinder 4 injection valve | 1F |
| Y62/5 | Cylinder 5 injection valve | 1F |
| Y62/6 | Cylinder 6 injection valve | 1G |
