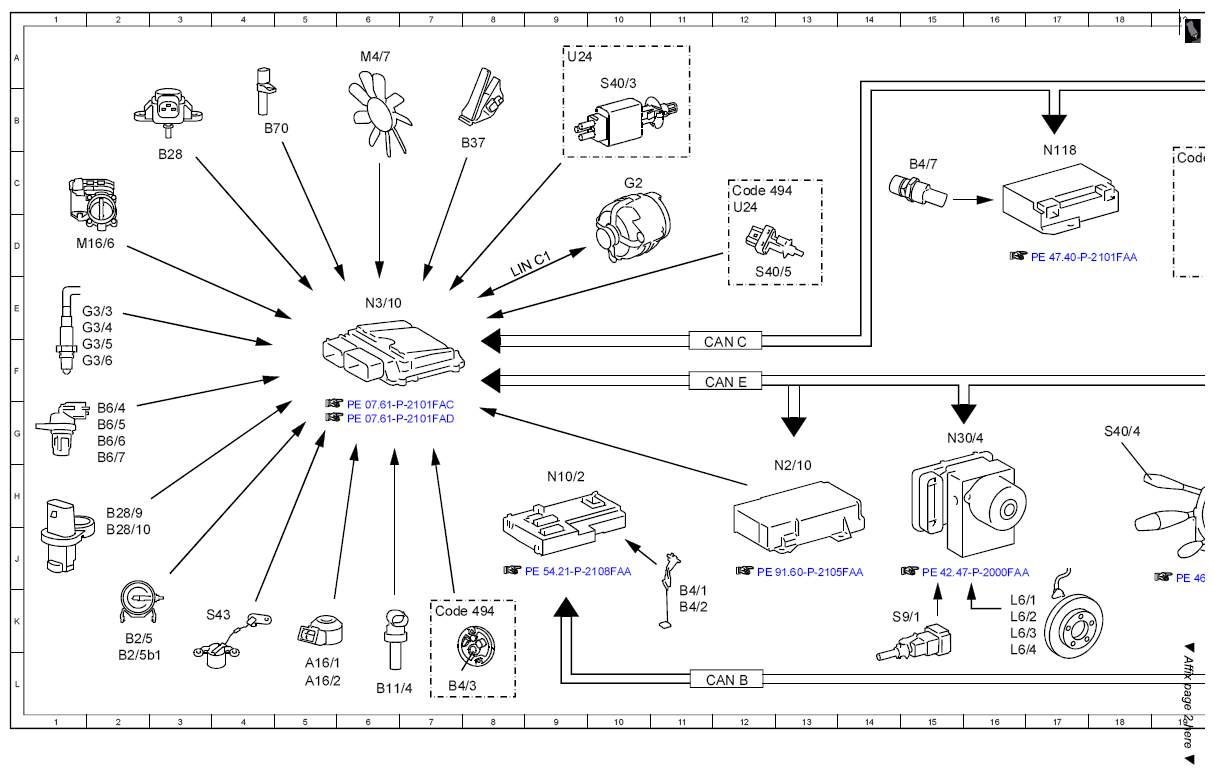

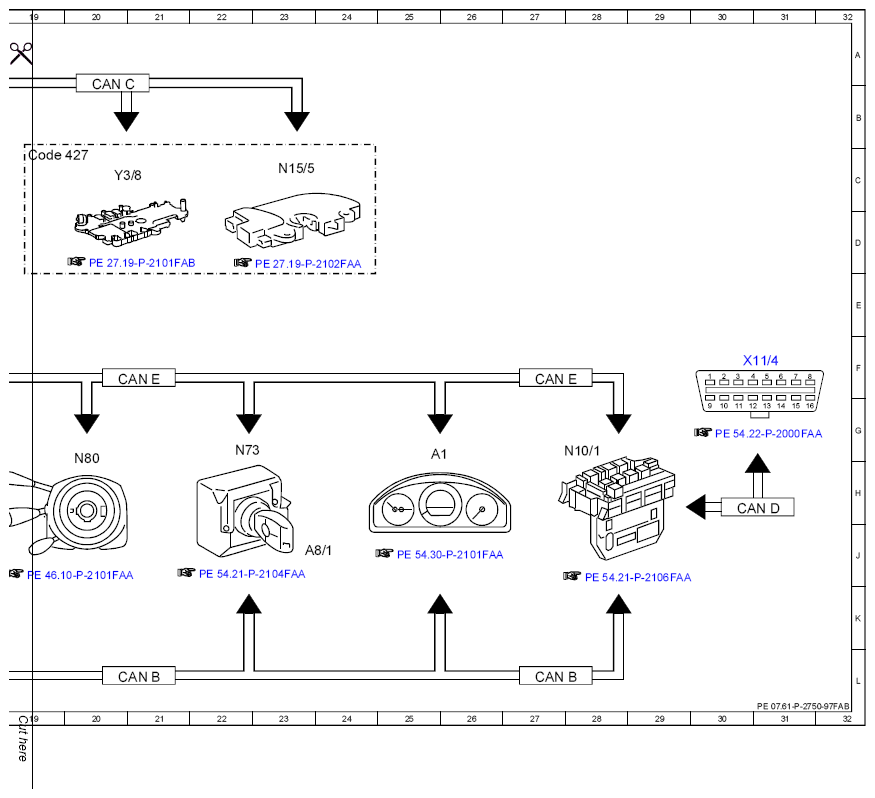

Electrical function schematic for engine control ME-SFI [ME], input signals - PE07.61-P-2750-97FAB
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2013 Mercedes-Benz C63, 2012 Mercedes-Benz C63, 2011 Mercedes-Benz C63, 2011 Mercedes-Benz C350, and 2010 Mercedes-Benz C63. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 25G |
| A16/1 | Right knock sensor | 5L |
| A16/2 | Left knock sensor | 5L |
| A8/1 | Transmitter key | 23J |
| B11/4 | Coolant temperature sensor | 6L |
| B2/5 | Hot film mass air flow sensor | 2K |
| B2/5b1 | Intake air temperature sensor | 2L |
| B28 | Pressure sensor | 3C |
| B28/10 | Right intake manifold tumble flap position sensor | 2J |
| B28/9 | Left intake manifold tumble flap position sensor | 2H |
| B37 | Accelerator pedal sensor | 7B |
| B4/1 | Left fuel level indicator sensor | 11K |
| B4/2 | Right fuel level indicator sensor | 11K |
| B4/3 | Fuel tank pressure sensor | 7L |
| B4/7 | Fuel pressure sensor | 15C |
| B6/4 | Left intake camshaft Hall sensor | 2G |
| B6/5 | Right intake camshaft Hall sensor | 2G |
| B6/6 | Left exhaust camshaft Hall sensor | 2G |
| B6/7 | Right exhaust camshaft Hall sensor | 2G |
| B70 | Crankshaft Hall sensor | 4B |
| CAN B | Interior CAN | 12L |
| CAN B | Interior CAN | 21L |
| CAN B | Interior CAN | 27L |
| CAN C | Drive train CAN | 20B |
| CAN C | Drive train CAN | 12E |
| CAN D | Diagnostic CAN | 30H |
| CAN E | Chassis CAN | 12F |
| CAN E | Chassis CAN | 28F |
| CAN E | Chassis CAN | 21F |
| Code 427 | 7-speed automatic transmission | 20C |
| Code 494 | USA version | 13C |
| Code 494 | USA version | 8K |
| G2 | Alternator | 10C |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 1E |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 1E |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 1F |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 1F |
| L6/1 | Left front axle RPM sensor | 16K |
| L6/2 | Right front axle RPM sensor | 16K |
| L6/3 | Left rear axle RPM sensor | 16K |
| L6/4 | Right rear axle RPM sensor | 16L |
| LIN C1 | Drive train LIN | 9D |
| M16/6 | Throttle valve actuator | 1D |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 6A |
| N10/1 | Front SAM control unit with fuse and relay module | 28G |
| N10/2 | Rear SAM control unit with fuse and relay module | 9H |
| N118 | Fuel pump control unit | 17C |
| N15/5 | Electronic selector lever module control unit | 23C |
| N2/10 | Supplemental restraint system control unit | 12H |
| N3/10 | ME-SFI [ME] control unit | 6E |
| N30/4 | Electronic Stability Program control unit | 15G |
| N73 | Electronic ignition switch control unit | 22G |
| N80 | Steering column module control unit | 20H |
| S40/3 | Clutch pedal switch | 10A |
| S40/4 | Cruise control lever | 18G |
| S40/5 | Start enable clutch pedal switch | 12D |
| S43 | Oil level check switch | 4K |
| S9/1 | Stop lamp switch | 14K |
| U24 | Valid for manual transmission | 12C |
| U24 | Valid for manual transmission | 9A |
| X11/4 | Diagnostic connector | 30F |
| Y3/8 | Fully integrated transmission control unit | 20C |
