Prepare rear end for welding in - AR64.20-P-1020-02CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grind mating surfaces on rear end down to bare metal in cross-hatched areas using round wire brush.

    IMPORTANT Grind spot weld flanges down to bare metal on both sides.

  2. Coat insides of spot weld flanges with zinc dust paint.

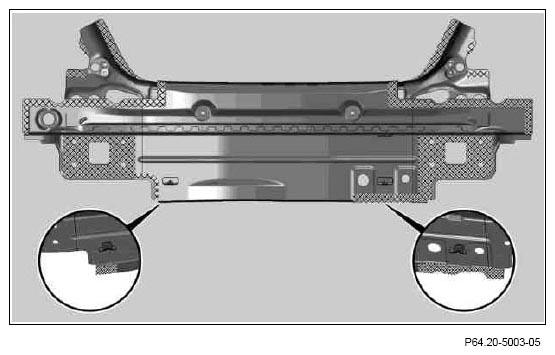

    Fig 1: Locating Rear End Mating Surfaces
    G07067579Courtesy of MERCEDES-BENZ USA
