Install and weld in wheel well - AR62.20-P-1200-17CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

The following operation steps are shown on model 204.0.

Install front wheel well (1) and end plate (2), fit and fix in place with straightening tool.
Push new part below remaining piece on body (arrows) when replacing left wheel well.

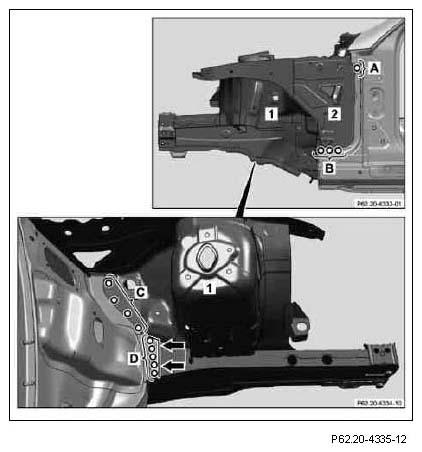

Drill Ø 6.7 mm rivet holes on front wheel well (1) and end plate (2) (areas A, B, C and D).

Fig 1: Identifying Front Wheel Well And End Plate Rivet Holes (Areas A, B, C And D)
Courtesy of MERCEDES-BENZ USA

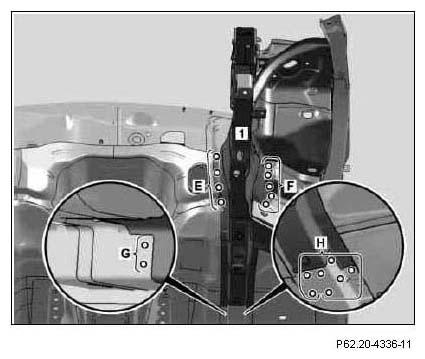

Drill Ø 6.7 mm rivet holes on front wheel well (1) (areas E, F, G and H).

Fig 2: Identifying Front Wheel Well Rivet Holes (Areas E, F, G And H)
Courtesy of MERCEDES-BENZ USA

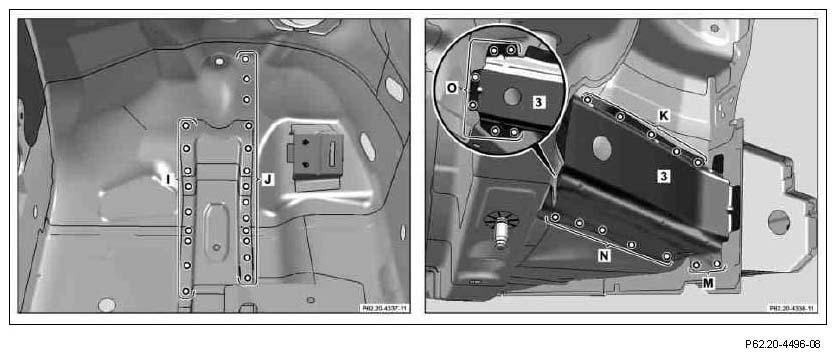

Fig 3: Identifying Inner Area Of Main Floor And Crossmember Rivet Holes (Areas I, J, K, M, N And O)
Courtesy of MERCEDES-BENZ USA
Install crossmember (3), fit and fix in place.
Drill Ø 6.7 mm rivet holes in inner area of main floor and on crossmember (3) (areas I, J, K, M, N and O).
Remove front wheel well (1), end plate (2) and crossmember (3).
Deburr rivet holes on both sides
Coat insides of those riveted joints that will not also be bonded with zinc dust paint.
Perform following operation step 9 only on model 207, 212 and 218.
Apply 2-component adhesive in crosshatched area (area GH).

Fig 4: Locating 2-Component Adhesive (Area GH)
Courtesy of MERCEDES-BENZ USA

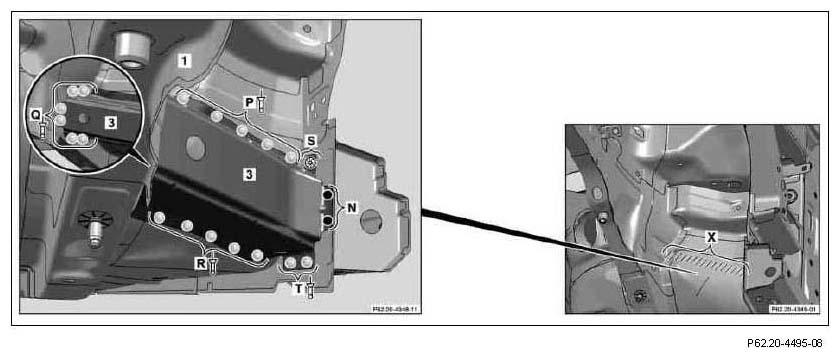

Fig 5: Identifying Crossmember Rivets & 2-Component Adhesive Areas
Courtesy of MERCEDES-BENZ USA
Install front wheel well (1) and end plate (2), fit and fix in place.
Apply 2-component adhesive in cross-hatched area (area X).
Do not coat bonding surfaces with zinc dust paint to prevent adhesion problems (area X).

Observe pretreatment of bonding surfaces.

Refer to the manufacturer's information for the curing and working times of 2-component adhesive.
Install crossmember (3), fit and fix in place.
Rivet crossmember (3) with Ø 6.5 x12.5 mm rivets (areas P, Q, R and T).
Crossmember (3) (area N).
Crossmember (3) (area S).

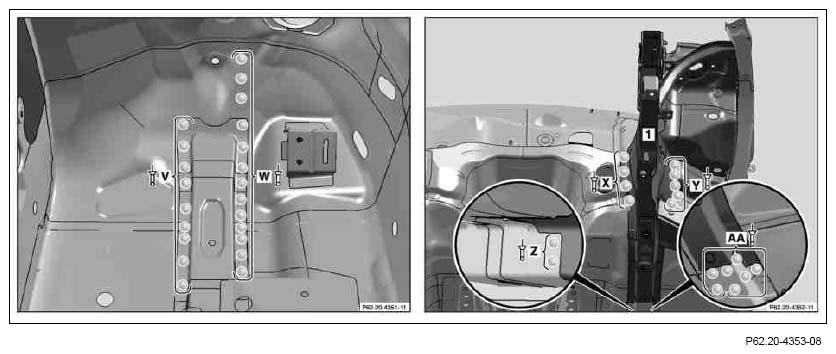

Fig 6: Identifying Front Wheel Well Riveting Areas (Areas V, W, X, Y, Z And AA)
Courtesy of MERCEDES-BENZ USA
Rivet front wheel well (1) with Ø 6.5 x14.5 mm rivets (areas V, W, X, Y, Z and AA).

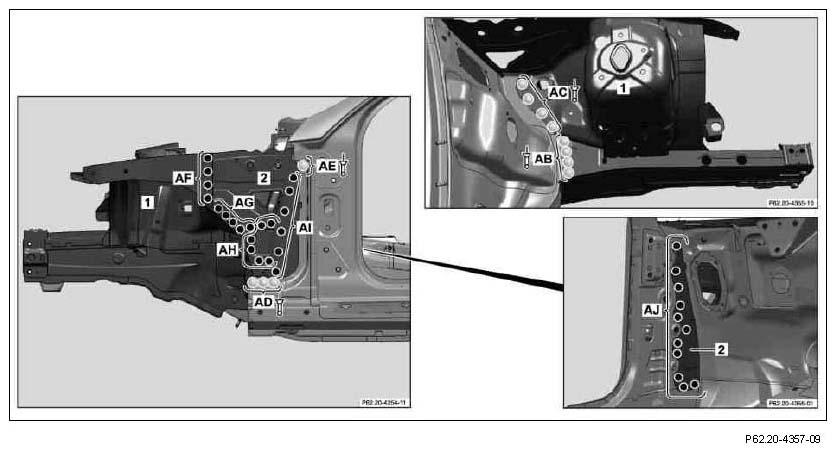

Fig 7: Identifying Front Wheel Well Riveting & Spot Welding Areas (Areas AB, AC, AD And AE)
Courtesy of MERCEDES-BENZ USA
Rivet front wheel well (1) with Ø 6.5 x14.5 mm rivets (areas AB, AC, AD and AE).
Front wheel well (1) and end plate (2) (areas AF, AG, AH, AI and AJ).
