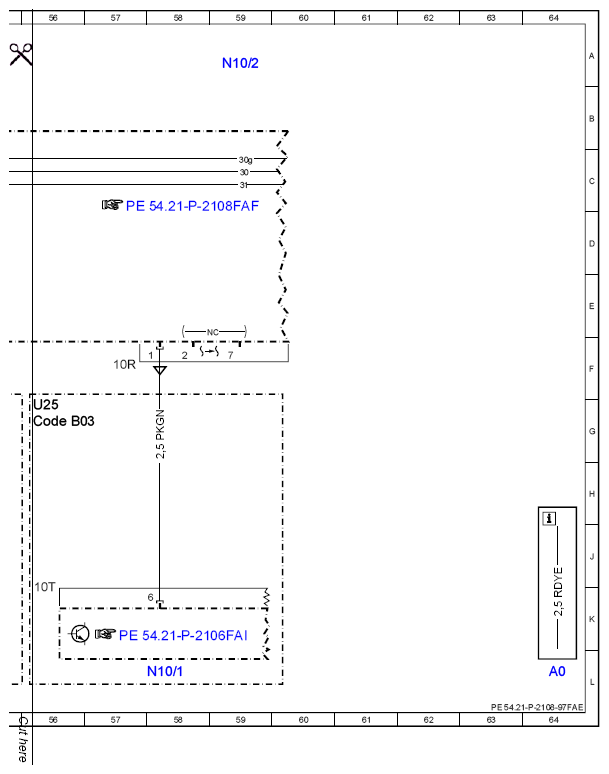

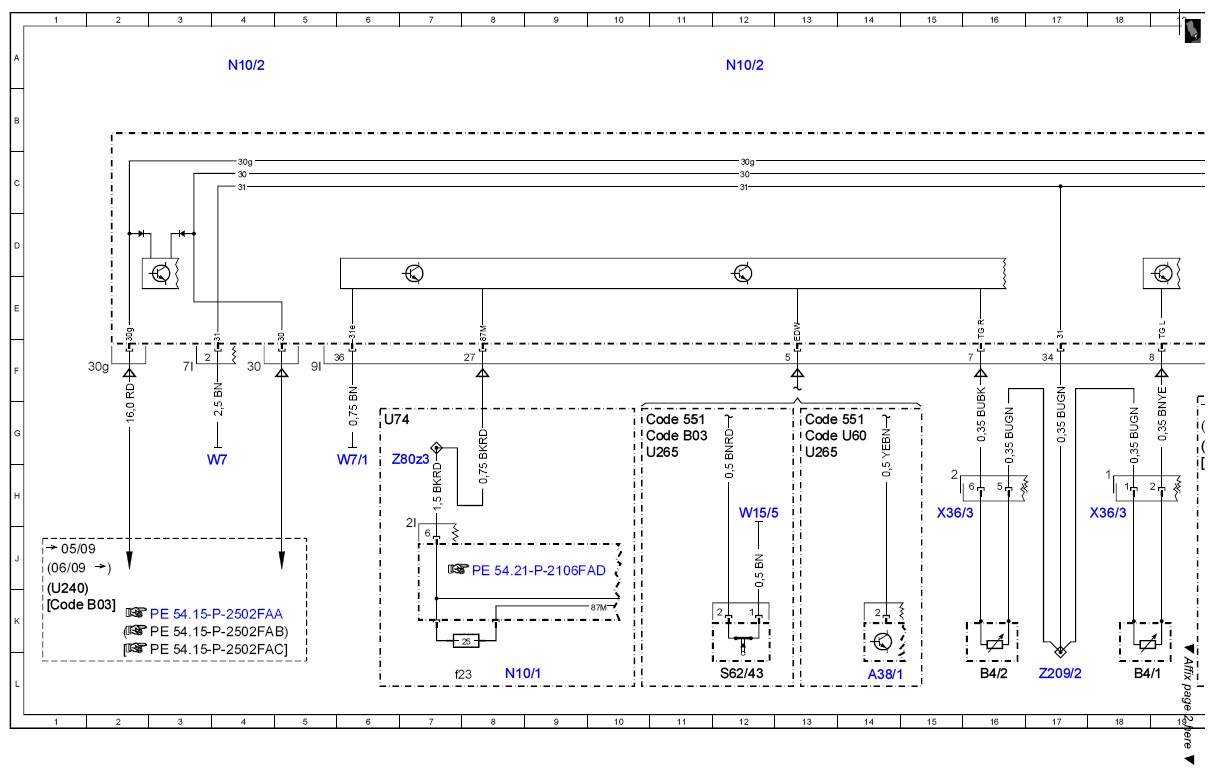

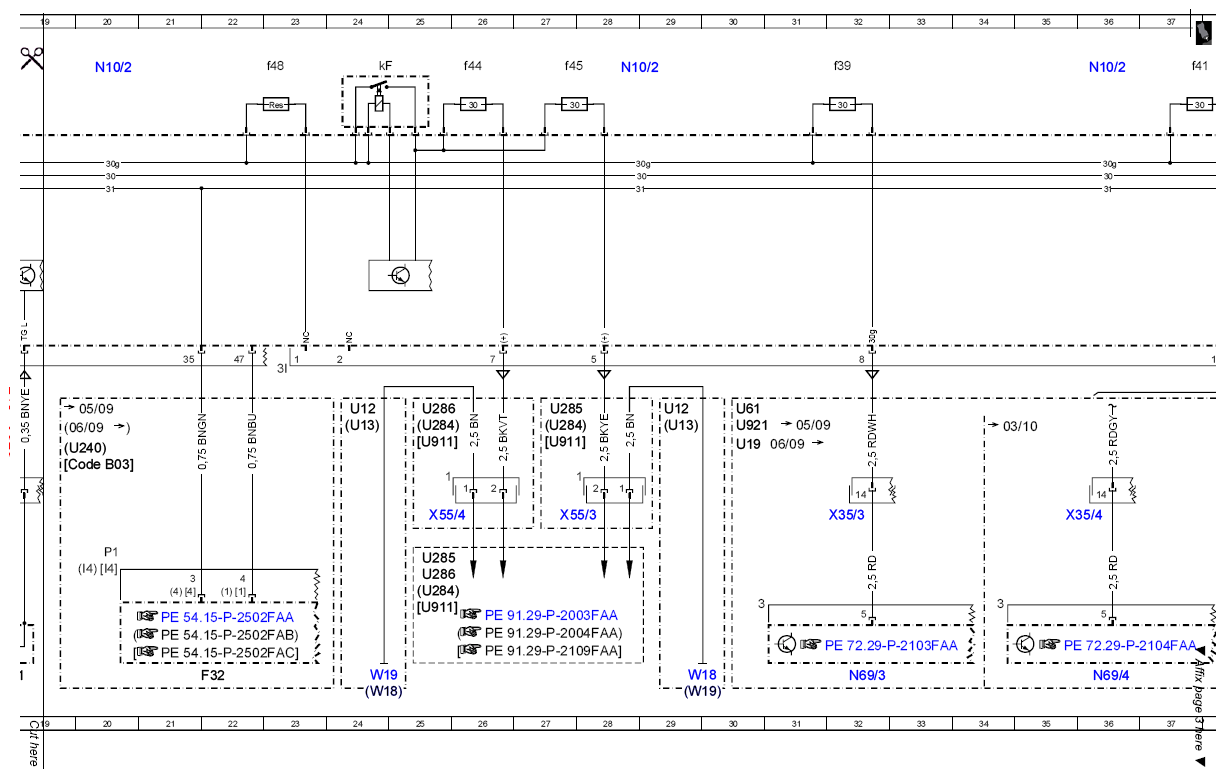

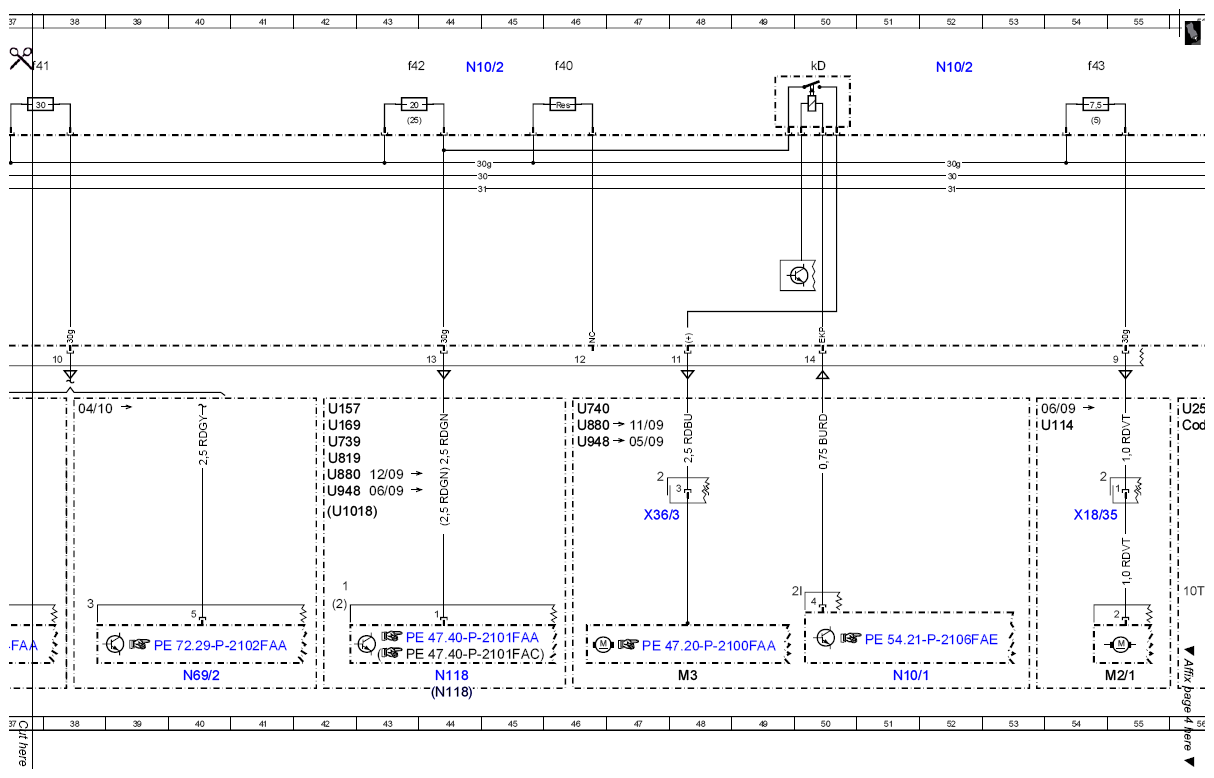

Wiring diagram for rear SAM control unit with fuse and relay module (N10/2) - PE54.21-P-2108-97FAE
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 14L |
| B4/1 | Left fuel level indicator sensor | 18L |
| B4/2 | Right fuel level indicator sensor | 16L |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 13G |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 10G |
| Code B03 | ECO start/stop function | 1K |
| Code B03 | ECO start/stop function | 10G |
| Code B03 | ECO start/stop function | 19H |
| Code B03 | ECO start/stop function | 56G |
| Code U60 | Active engine hood | 13G |
| F32 | Front electrical prefuse box | 22L |
| M2/1 | Rear blower motor | 55L |
| M3 | Fuel pump (FP) | 48L |
| N10/1 | Front SAM control unit with fuse and relay module | 8L |
| N10/1 | Front SAM control unit with fuse and relay module | 51L |
| N10/1 | Front SAM control unit with fuse and relay module | 58L |
| N10/1f23 | Fuse 23 | 7L |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 28A |
| N10/2 | Rear SAM control unit with fuse and relay module | 36A |
| N10/2 | Rear SAM control unit with fuse and relay module | 44A |
| N10/2 | Rear SAM control unit with fuse and relay module | 52A |
| N10/2 | Rear SAM control unit with fuse and relay module | 59A |
| N10/2f39 | Fuse 39 | 32A |
| N10/2f40 | Fuse 40 | 46A |
| N10/2f41 | Fuse 41 | 37A |
| N10/2f42 | Fuse 42 | 43A |
| N10/2f43 | Fuse 43 | 54A |
| N10/2f44 | Fuse 44 | 26A |
| N10/2f45 | Fuse 45 | 27A |
| N10/2f48 | Fuse 48 | 23A |
| N10/2kD | Fuel pump relay | 50A |
| N10/2kF | Seat adjustment relay | 24A |
| N118 | Fuel pump control unit | 44L |
| N118 | Fuel pump control unit | 44L |
| N69/2 | Right front door control unit | 40L |
| N69/3 | Left rear door control unit | 32L |
| N69/4 | Right rear door control unit | 36L |
| S62/43 | Left engine hood contact switch | 12L |
| U1018 | Valid for gasoline engine 276 | 42H |
| U114 | Valid for 3-zone THERMOTRONIC | 53G |
| U12 | Valid for left-hand drive vehicles | 29G |
| U12 | Valid for left-hand drive vehicles | 24G |
| U13 | Valid for right-hand drive vehicles | 29G |
| U13 | Valid for right-hand drive vehicles | 24G |
| U157 | Valid for combustion engine 272 DE | 42G |
| U169 | Valid for gasoline engine 271 DE | 42G |
| U19 | Valid for standard equipment | 30G |
| U240 | Valid for all except ECO start/stop function | 1K |
| U240 | Valid for all except ECO start/stop function | 19G |
| U25 | Valid for automatic transmission | 56G |
| U265 | Not valid for pedestrian protection | 10G |
| U265 | Not valid for pedestrian protection | 13G |
| U284 | Valid for fully electric seat adjustment | 25K |
| U284 | Valid for fully electric seat adjustment | 25G |
| U284 | Valid for fully electric seat adjustment | 27G |
| U285 | Valid for partially electric driver seat adjustment | 25J |
| U285 | Valid for partially electric driver seat adjustment | 27G |
| U286 | Valid for partially electric front passenger seat adjustment | 25J |
| U286 | Valid for partially electric front passenger seat adjustment | 25G |
| U61 | Not valid for model 204.3 | 30G |
| U739 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 42G |
| U74 | Valid for diesel engines | 6G |
| U740 | Valid for diesel engine 646 | 46G |
| U819 | Valid for gasoline engine 272 | 42G |
| U880 | Valid for diesel engine 642 | 42H |
| U880 | Valid for diesel engine 642 | 46G |
| U911 | Valid for lumbar support | 25K |
| U911 | Valid for lumbar support | 27G |
| U911 | Valid for lumbar support | 25G |
| U921 | Not valid for England | 30G |
| U948 | Valid for diesel engine 651 | 42H |
| U948 | Valid for diesel engine 651 | 46G |
| W15/5 | Left front footwell ground point | 12H |
| W18 | Left front seat crossmember ground point | 24L |
| W18 | Left front seat crossmember ground point | 29L |
| W19 | Right front seat crossmember ground point | 24L |
| W19 | Right front seat crossmember ground point | 29L |
| W7 | Right wheelhouse trunk ground point | 4H |
| W7/1 | Right taillamp trunk ground point | 6H |
| X18/35 | Instrument panel and vehicle floor electrical connector | 54H |
| X35/3 | Left rear door electrical connector | 32H |
| X35/4 | Right rear door electrical connector | 36H |
| X36/3 | Fuel pump harness electrical connector | 15H |
| X36/3 | Fuel pump harness electrical connector | 18H |
| X36/3 | Fuel pump harness electrical connector | 47H |
| X55/3 | Driver seat connector block | 28H |
| X55/4 | Front passenger seat connector block | 25H |
| Z209/2 | Fuel pump control unit connector sleeve | 17L |
| Z80z3 | Cross section reduction connector sleeve | 7G |
