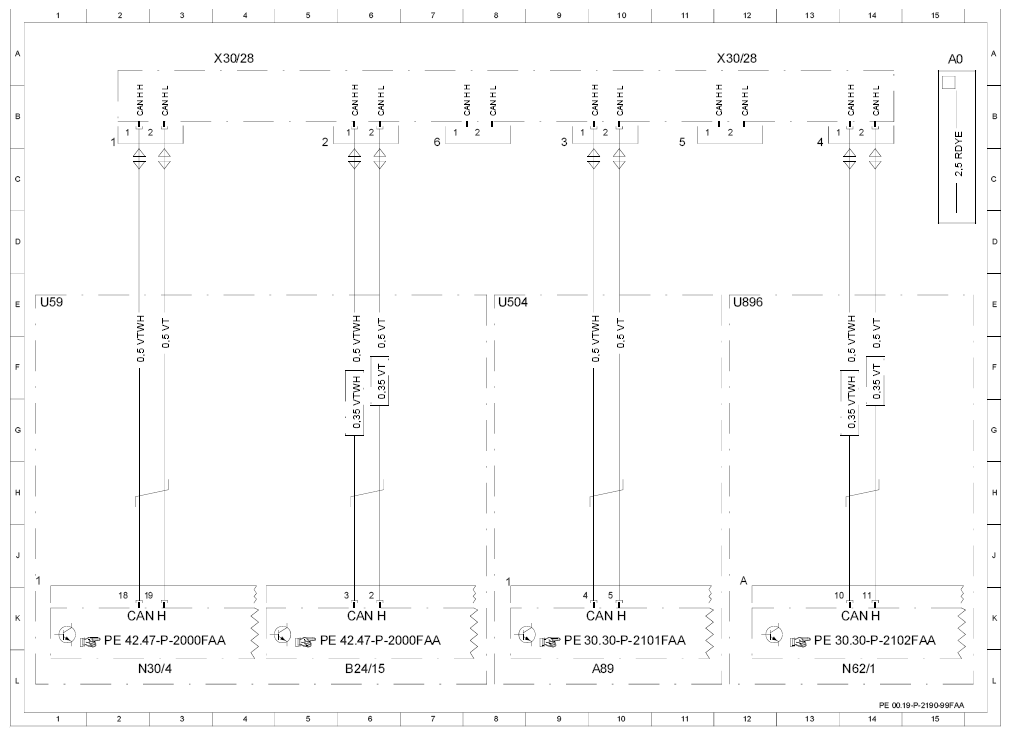

Wiring diagram of vehicle dynamics CAN - PE00.19-P-2190-99FAA
WARNING: This page is about a different car, the 2012 Mercedes-Benz C300, 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 15 A |
| A89 | DISTRONIC electric controller unit | 10 L |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 6 L |
| CAN H | Vehicle dynamics CAN | 2 K |
| CAN H | Vehicle dynamics CAN | 6 K |
| CAN H | Vehicle dynamics CAN | 9 K |
| CAN H | Vehicle dynamics CAN | 13 K |
| N30/4 | Electronic Stability Program control unit | 2 L |
| N62/1 | Radar sensors control unit | 14 L |
| U131 | Valid for ESP with further vehicle dynamics CAN special equipment | 1 E |
| U504 | Valid for DISTRONIC | 8 E |
| U896 | Valid for City Assist System | 12 E |
| X30/28 | Vehicle dynamics CAN voltage distributor electrical connector | 4 A |
| X30/28 | Vehicle dynamics CAN voltage distributor electrical connector | 12 A |
