Remove/install rear shelf - AR68.30-P-4581QBS (Black Series)
MODEL 209 with CODE (P98) Black Series

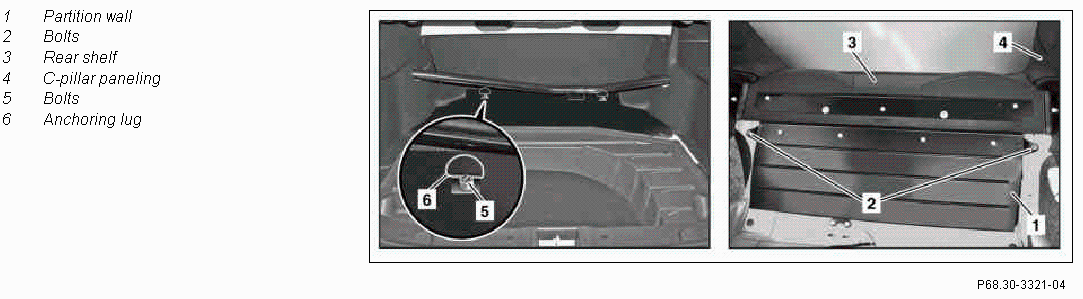

| Remove/install | |||
| 1 | Remove floor covering in trunk | ||
| 2 | Unscrew bolts (5) and remove anchoring lug (6) | ||
| 3 | Remove paneling in rear | AR68.30-P-4782QBS | |
| 4 | Remove paneling (4) from C-Pillar | AR68.30-P-4490Q | |
| 5 | Remove bolt (2) | ||
| 6 | Remove partition wall (1) | ||
| 7 | Remove rear shelf (3) | ||
| 8 | Install in the reverse order |
