Removing and installing hands-free system speaker - AR82.70-P-8968Z

MODEL all with CODE (274) MB D-network telephone

Model 124
Double coil speaker, radio/CTEL HFS (H4/13) in left of instrument panel
Model 129 with MB sound system
Loudspeaker (H4/16, H4/18) in left and right doors
Models 129/140 with Bose sound system
Loudspeaker (H4/14, H4/15) in left and right of instrument panel

Model 140 with standard loudspeaker system

Tandem loudspeaker in left and right of instrument panel
Model 202 with standard loudspeaker system/Bose sound system
Loudspeaker (H4/12) in inner left of rear window shelf

Model 202 with Nokia sound system

Double coil speaker, radio/CTEL HFS (H4/13) in inner left of rear window shelf

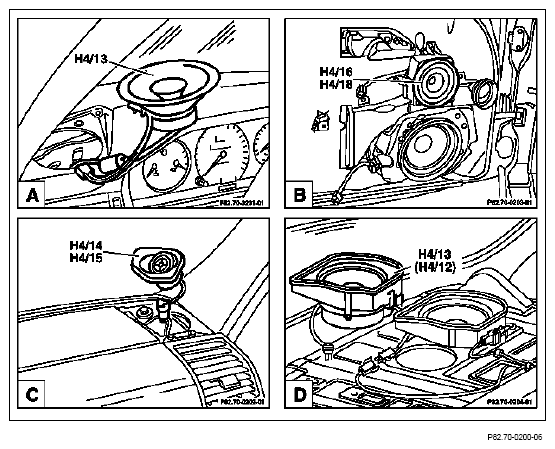

Fig 1: Identifying Hands-Free System Speaker Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1	Remove and install loudspeakers in instrument panel	Model 124	ra82001247833x
		Model 129	AR82.62-P-7833B
		Model 140	ra82001407833x
2	Remove and install loudspeakers in front doors	Model 129	AR82.62-P-7845A
3	Remove and install loudspeakers in rear window shelf	Model 202	AR82.62-P-7836EA
