Remove/install power module of headlamp range adjustment (HRA [LWR]) - AR82.10-P-4013Q
MODEL 209
with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
except CODE (P98) Black Series
Illustrated with bi-xenon headlamp unit with integrated curve illumination code 615
| Remove/install | |||
|---|---|---|---|
| Risk of death
caused by high voltage levels present at xenon headlamps. Risk of explosion/fire hazard through highly flammable material in the area of damaged xenon bulbs Risk of injury through UV light, hot components on xenon headlamps and glass splinters when xenon bulbs burst Risk of poisoning through inhalation of mercury vapor and swallowing of or skin contact with toxic salts and mercury compounds |
Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Switch off complete lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure that the workplace is sufficiently ventilated. | AS82.10-Z-0001-01A | |
| 1.1 | Remove left front lamp unit (E1) | AR82.10-P-4730QA | |
| 1.2 | Remove right front lamp unit (E2) | AR82.10-P-4730QA | |

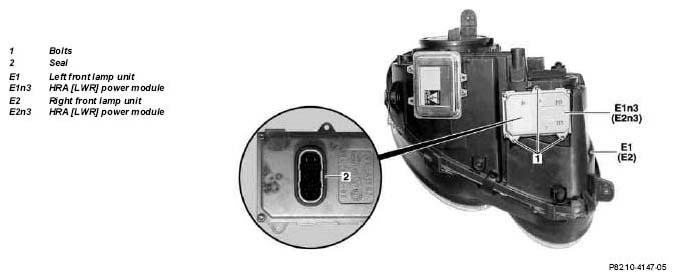

| 2 | Remove bolts (1) | ||
| 3 | Carefully pry off HRA [LWR] power module (E1n3) or HRA [LWR] power module (E2n3) from the left front lamp unit (E1) or right front lamp unit (E2) using a long wedge | ||
| Long wedge | Fig 2 | ||
| 4 | Install in the reverse order | ||
| 5 | Check headlamp setting and correct if necessary | ||
| Check and correct headlamp adjustment | AP82.10-P-8260P |
