Remove/install blocking circuit of rear window antenna - AR82.62-P-7200Q

MODEL 209.3

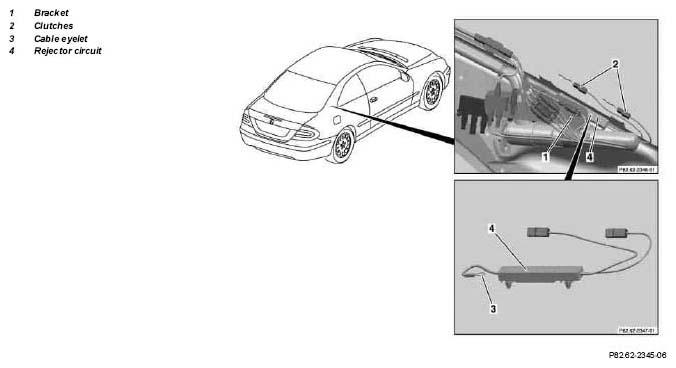

Fig 1: Identifying Blocking Circuit Of Rear Window Antenna Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
1	Remove moldings from C-pillar		AR68.30-P-4490Q
2	Unclip bracket (1)
3	Disconnect connectors (2)	Observe correct installation position.
4	Unscrew screw at cable eyelet (3)
5	Unclip rejector circuit (4) and remove
6	Install in the reverse order
