Connect STAR DIAGNOSIS and read out fault memory - AD00.00-P-2000-04A

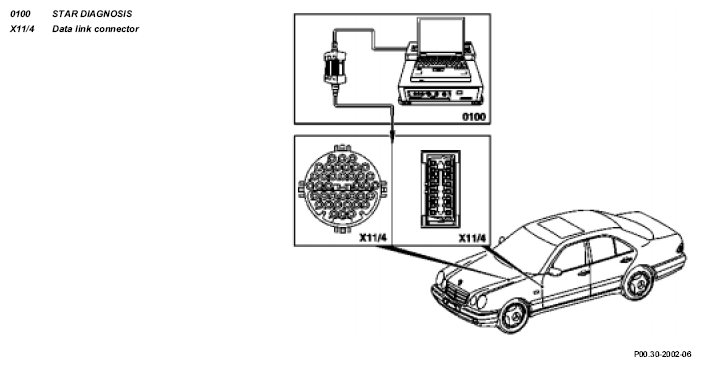

Fig 1: Connecting STAR DIAGNOSIS For Read Out Fault Memory (Illustrated On Model 210)

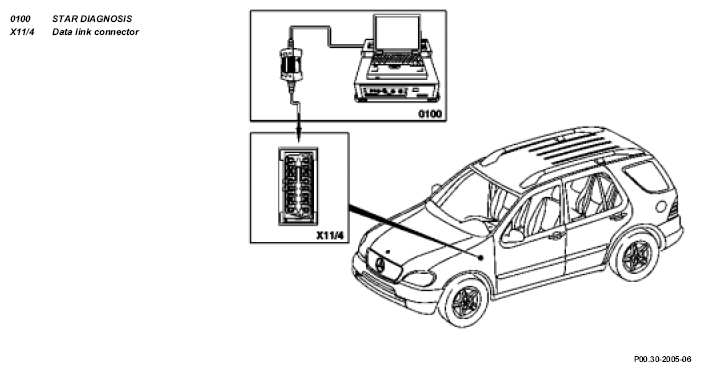

Fig 2: Connecting STAR DIAGNOSIS For Read Out Fault Memory (Illustrated On Model 163)

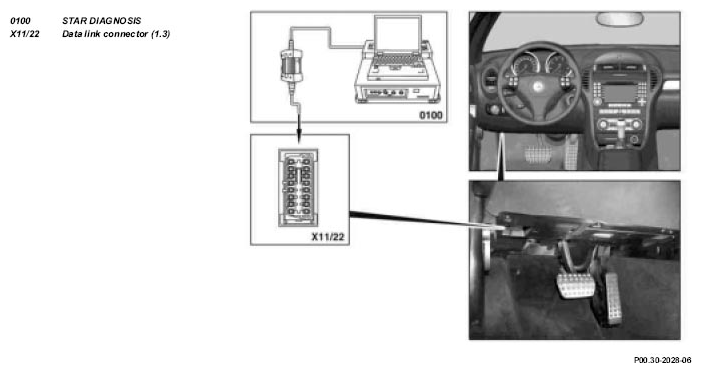

Fig 3: Connecting STAR DIAGNOSIS For Read Out Fault Memory (Illustrated On Model 164.1)

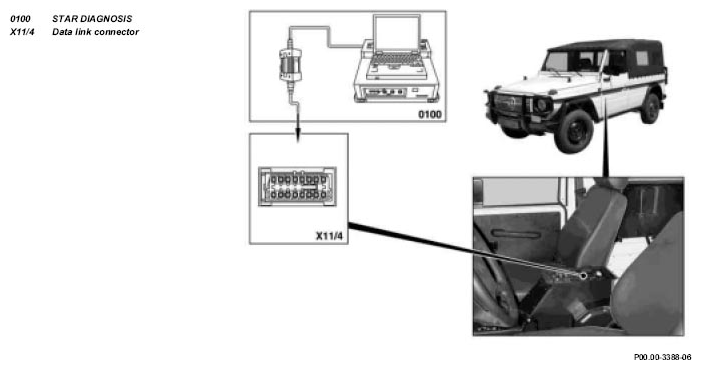

Fig 4: Connecting STAR DIAGNOSIS For Read Out Fault Memory (Illustrated On Model 461.302)

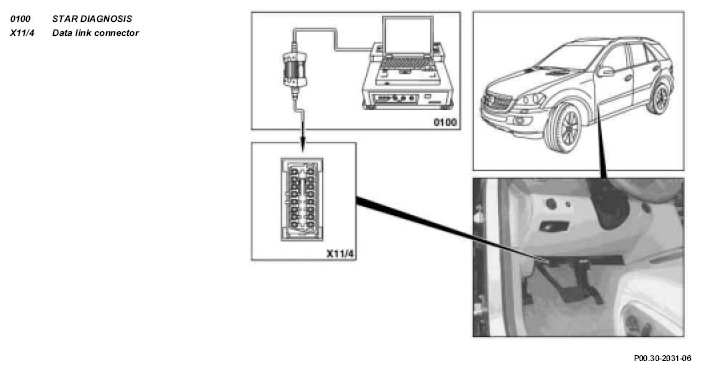

Fig 5: Connecting STAR DIAGNOSIS For Read Out Fault Memory (Illustrated On Model 171.4)

1. Connect STAR DIAGNOSIS (0100) to diagnostic socket, on the data link connector (X11/4) or on the data link connector (1.3) (X11/22).
2. Switch on ignition.
3. Start the Diagnosis Assistance System.
4. In the "Model" menu, select the sub menu "Other model series".
5. Go through the instructions on the screen:
   • Enter the control unit version.
   • Read fault memory, erase.
   • Read actual values.
   • Perform actuations.
   • Adaptation of control units
6. Disconnect STAR DIAGNOSIS (0100).

Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following completion of the operations.
