Remove/install outer paneling on trunk lid - AR88.50-P-5080Q

MODEL 209.3

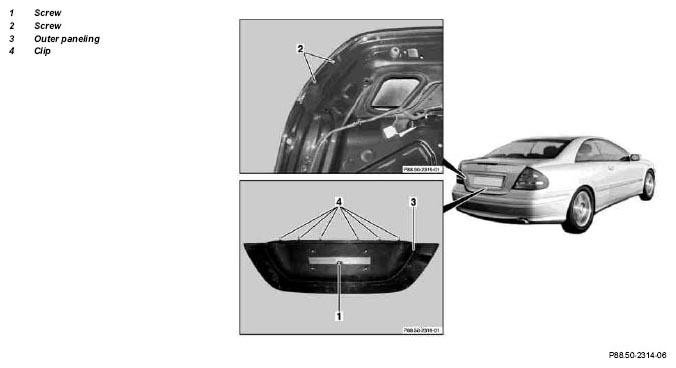

Fig 1: Identifying Outer Paneling On Trunk Lid Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove license plate
2	Unscrew screws (1)
3	Open trunk lid
4	Remove paneling at trunk lid		AR68.30-P-8150Q
5	Unscrew screw (2)	On left and right.
6	Unclip outer paneling (3) and remove.	Avoid damage to paintwork. Installation:  Ensure that clips (4) seat properly and are in good condition.
7	Install in the reverse order
