Retrofit illuminated door sill molding - AZ82.20-P-0001Q: Notes

MODEL 209.308 /316 /320 /341 /342 /343 /354 /356 /361 /365 /372 /375 /376 /377 /420 /441 /442 /454 /456 /461 /465 /472 /475 /476 /477

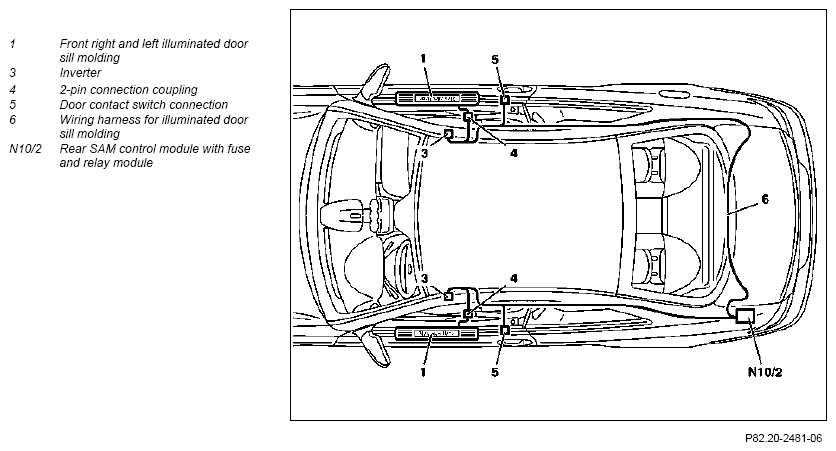

Fig 1: Identifying Illuminated Door Sill Molding Components

Courtesy of MERCEDES-BENZ USA

It is also possible to order the illuminated door sill molding with the lettering "AMG" (see table Parts Ordering Notes).

	Remove
	Risk of death. Death may result if contact is made with parts carrying high voltages.	Do not touch parts carrying high voltages. Persons who wear electronic implants (e.g. heart pacemakers) must not carry out any work on such components.	AS00.00-Z-0020-01A
1	Connect quiescent current retention unit		*WH58.30-Z-1012-09A
	Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, naked flames or smoking. Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect ground cable of battery	Loosen battery	AS54.10-Z-0001-01A
	Disconnect ground cable of battery	Loosen battery	AR54.10-P-0003Q
	Notes on battery	All models	AH54.10-P-0001-01A
3	Remove rear seat cushion
	Remove rear seat cushion		AR91.12-P-1020P
4	Remove fold-down rear backrest
	Remove fold-down rear backrest	Models 209.342/ 361/ 365/ 375 Models 209.316 /343	AR91.12-P-1720Q
5	Remove left and right door sill moldings
6	Pull off rubber door seal near the B-pillar on both sides at the front
7	Open cable ducts on both sides of the vehicle at the front and rear
8	Remove coverings in trunk
	Remove coverings in trunk		AR68.30-P-4600PB
9	Open rear SAM
10	Remove rear passenger compartment side trim panel	Left and right side trim panel. Work side trim panel loose until the wiring harness can be routed.
	Remove rear passenger compartment side trim panel		AR68.30-P-4780Q
	Install
11	Connect wiring harness	Wiring harness for illuminated door sill molding.	AZ82.20-P-0001-02Q
12	Check for proper function	When the door contact switch is actuated the door sill molding illuminates, however, switches off automatically after 5 minutes.
13	Installation is carried out in the reverse sequence	Steps 10 to 1

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1012-09A	Quiescent current retention unit

PARTS ORDERING NOTES

Part no.	Designation	Quantity
B6 689 00 71	Illuminated door sill molding with cable set (2-way)	as required
B6 602 10 26	Illuminated door sill molding with cable set (2-way) with lettering "AMG"	1
A004 545 00 26	Cable terminal	1
A003 545 13 01	Fuse holder	1
