Removing and installing keyless go antenna - AR82.62-P-8000QC
MODEL 209 with CODE (889) Keyless Go
Antenna in trunk
Courtesy of MERCEDES-BENZ OF NORTH AMERICA. MODIFICATION NOTES
| 11.2.04 |
Disconnect/connect/remove ground lead from battery |
|
|
  |
Removal/installation |
|
|
| 1 |

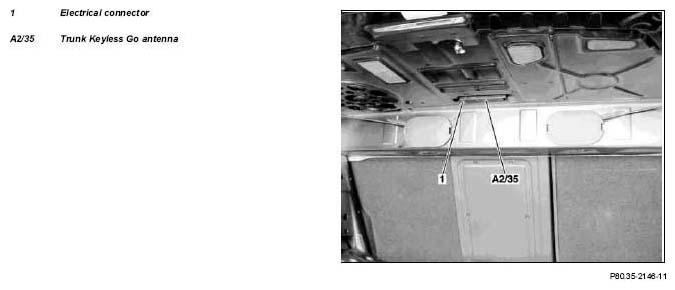

Unclip trunk Keyless Go antenna (A2/35) |
|
|
| 2 |
Disconnect electrical connector (1) |
|
|
| 3 |
Install in the reverse order |
|
|
| 4 |
Perform function check |
|
|
