Remove/install windshield washer system pump - AR82.35-P-6002QBS (Black Series)

MODEL 209 with CODE (P98) Black Series

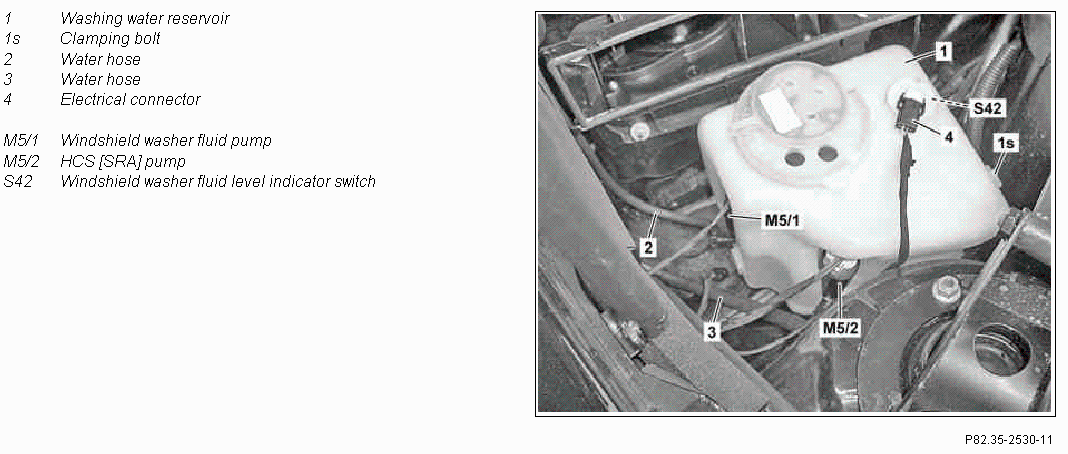

Fig 1: Removing/Installing Windshield Washer System Pump - Black Series

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove dust filter		AP83.00-P-8381P
2	Undo clamp screw (1s) and lift up washer fluid reservoir (1)
3	Remove windshield washer fluid pump (M5/1)	Collect washer fluid which flows out.
4	Detach water hose (2) from the windshield washer fluid pump (M5/1)
5	Detach electrical connector from pump for window washer fluid (M5/1)
6	Install in the reverse order
7	Correct fluid level of windshield washer system
	Check windshield washer system fluid level and correct if necessary		AP82.35-P-8210P
